SDO HMI 2014-01-17 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.85 | 223.76 | 30.35 | 158.53 | -16.05 | 11.75 | 45.05 | 252.20 | 0.7167 | 792.4 | 328.2 | |
|
previous
or next observation for the same group /

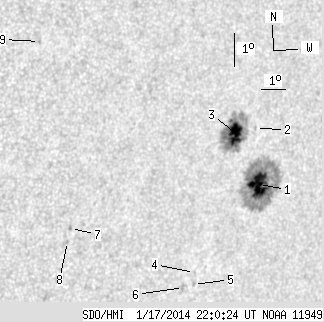

back to the solar disc SDO HMI 2014-01-17 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.25 | 140.69 | 18.09 | 100.89 | -16.46 | 12.37 | 45.67 | 251.76 | 0.7247 | 929.2 | 277.4 | |
| 0.00 | 1.11 | 0.00 | 0.78 | -14.80 | 11.77 | 45.07 | 253.93 | 0.7147 | 434.0 | 370.2 | |
| 17.60 | 73.79 | 12.26 | 51.36 | -15.00 | 10.96 | 44.26 | 253.49 | 0.7055 | 1024.4 | 466.0 | |
| 0.00 | 0.34 | 0.00 | 0.24 | -19.26 | 10.46 | 43.76 | 247.44 | 0.7094 | 638.0 | 590.8 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -19.62 | 10.54 | 43.84 | 246.96 | 0.7114 | 592.0 | 494.4 | |
| 0.00 | 2.89 | 0.00 | 2.02 | -19.73 | 10.15 | 43.44 | 246.68 | 0.7072 | 732.0 | 624.7 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -18.20 | 5.01 | 38.31 | 247.12 | 0.6416 | -769.0 | -630.2 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -18.59 | 5.00 | 38.30 | 246.52 | 0.6428 | -649.0 | -530.6 | |
| 0.00 | 1.11 | 0.00 | 0.68 | -12.67 | 2.67 | 35.97 | 255.13 | 0.5951 | -749.0 | -604.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
