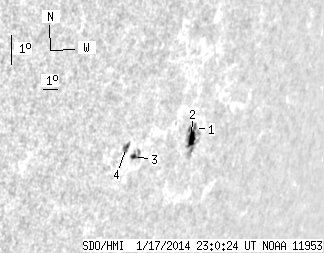

SDO HMI 2014-01-17 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.07 | 36.90 | 13.86 | 42.64 | -17.71 | 30.95 | 64.79 | 252.65 | 0.9044 | 139.4 | 40.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-17 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.85 | 25.25 | 1.02 | 30.34 | -17.19 | 32.06 | 65.91 | 253.30 | 0.9123 | 428.2 | 195.7 | |
| 6.97 | -1.00 | 8.37 | -1.00 | -17.53 | 32.07 | 65.91 | 252.93 | 0.9125 | 478.3 | 999999 | |
| 1.70 | 6.63 | 1.81 | 7.07 | -18.35 | 28.46 | 62.30 | 251.78 | 0.8867 | -489.8 | -325.4 | |
| 2.55 | 5.02 | 2.66 | 5.23 | -18.12 | 27.84 | 61.69 | 252.00 | 0.8818 | -609.7 | -472.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
