SDO HMI 2014-01-18 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.66 | 26.55 | 14.39 | 32.89 | -17.75 | 30.72 | 66.76 | 252.72 | 0.9178 | 121.0 | 138.3 | |
|
previous
or next observation for the same group /

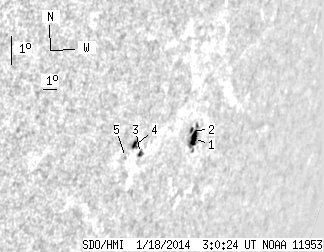

back to the solar disc SDO HMI 2014-01-18 03:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.04 | 17.27 | 7.88 | 22.46 | -17.57 | 32.03 | 68.07 | 252.98 | 0.9265 | 495.4 | 334.1 | |
| 1.19 | -1.00 | 1.53 | -1.00 | -17.35 | 31.69 | 67.73 | 253.21 | 0.9243 | 314.7 | 999999 | |
| 1.62 | 3.32 | 1.84 | 3.79 | -18.30 | 28.44 | 64.48 | 252.01 | 0.9027 | -395.9 | -306.6 | |
| 2.81 | 4.85 | 3.14 | 5.42 | -18.10 | 27.87 | 63.91 | 252.20 | 0.8985 | -502.1 | -382.6 | |
| 0.00 | 1.11 | 0.00 | 1.22 | -18.49 | 27.50 | 63.54 | 251.73 | 0.8960 | -218.0 | -273.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
