SDO HMI 2014-01-18 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.06 | 24.58 | 14.02 | 31.44 | -17.72 | 31.03 | 67.61 | 252.80 | 0.9233 | 188.8 | 149.4 | |
|
previous
or next observation for the same group /

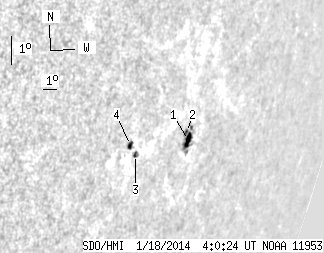

back to the solar disc SDO HMI 2014-01-18 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.29 | 17.44 | 8.40 | 23.23 | -17.59 | 32.10 | 68.69 | 252.99 | 0.9303 | 483.3 | 288.0 | |
| 0.94 | -1.00 | 1.23 | -1.00 | -17.37 | 31.75 | 68.34 | 253.21 | 0.9281 | 430.0 | 999999 | |
| 1.36 | 3.06 | 1.58 | 3.56 | -18.30 | 28.41 | 65.00 | 252.05 | 0.9063 | -381.1 | -291.0 | |
| 2.47 | 4.08 | 2.81 | 4.65 | -18.06 | 27.88 | 64.46 | 252.28 | 0.9025 | -476.9 | -401.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
