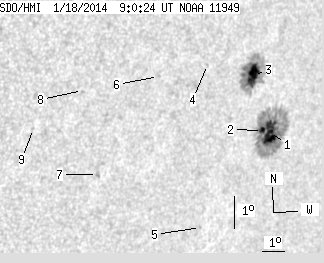

SDO HMI 2014-01-18 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.87 | 186.84 | 29.92 | 147.65 | -15.93 | 11.60 | 50.91 | 253.43 | 0.7808 | 735.3 | 272.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-18 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.55 | 117.33 | 14.88 | 94.17 | -16.45 | 12.28 | 51.59 | 252.88 | 0.7886 | 837.2 | 240.6 | |
| 2.47 | -1.00 | 1.96 | -1.00 | -16.41 | 11.91 | 51.23 | 252.87 | 0.7849 | 1107.5 | 999999 | |
| 16.85 | 62.20 | 13.08 | 48.25 | -14.81 | 10.93 | 50.24 | 254.79 | 0.7725 | 963.6 | 410.7 | |
| 0.00 | 1.02 | 0.00 | 0.76 | -14.61 | 8.71 | 48.03 | 254.73 | 0.7481 | 591.0 | 432.5 | |
| 0.00 | 1.19 | 0.00 | 0.92 | -19.50 | 10.09 | 49.40 | 248.61 | 0.7711 | 699.0 | 594.5 | |
| 0.00 | 1.19 | 0.00 | 0.85 | -15.10 | 6.65 | 45.96 | 253.73 | 0.7254 | -374.0 | -383.4 | |
| 0.00 | 2.55 | 0.00 | 1.79 | -18.18 | 4.90 | 44.21 | 249.10 | 0.7115 | -745.0 | -597.2 | |
| 0.00 | 0.68 | 0.00 | 0.46 | -15.70 | 3.54 | 42.85 | 252.25 | 0.6899 | -406.0 | -415.9 | |
| 0.00 | 0.68 | 0.00 | 0.45 | -16.94 | 1.84 | 41.15 | 249.99 | 0.6722 | -586.0 | -525.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
