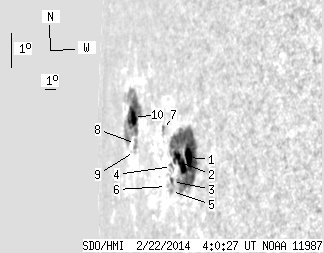

SDO HMI 2014-02-22 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.79 | 187.31 | 57.45 | 368.51 | -1.51 | 147.17 | -75.39 | 89.71 | 0.9672 | -108.2 | 3.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-22 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.29 | 112.84 | 14.91 | 185.59 | -2.32 | 150.37 | -72.20 | 90.15 | 0.9527 | -700.2 | -167.0 | |
| 13.93 | -1.00 | 23.45 | -1.00 | -2.38 | 149.55 | -73.01 | 90.31 | 0.9569 | -272.3 | 999999 | |
| 0.00 | 3.35 | 0.00 | 5.94 | -2.84 | 148.63 | -73.94 | 90.89 | 0.9612 | -253.0 | -173.0 | |
| 0.00 | 2.41 | 0.00 | 4.27 | -2.38 | 148.59 | -73.97 | 90.43 | 0.9616 | -82.0 | -23.9 | |
| 0.00 | 1.89 | 0.00 | 3.37 | -3.12 | 148.47 | -74.10 | 91.20 | 0.9618 | 69.0 | 81.6 | |
| 0.00 | 0.60 | 0.00 | 1.10 | -2.90 | 147.95 | -74.62 | 91.05 | 0.9643 | 198.0 | 195.3 | |
| 0.00 | 3.01 | 0.00 | 5.67 | -1.18 | 147.83 | -74.73 | 89.29 | 0.9658 | 479.0 | 397.3 | |
| 0.00 | 3.78 | 0.00 | 9.27 | -1.16 | 144.18 | -78.38 | 89.72 | 0.9803 | 485.0 | 417.8 | |
| 0.00 | 2.15 | 0.00 | 5.36 | -1.38 | 144.00 | -78.56 | 89.96 | 0.9808 | 416.0 | 325.3 | |
| 7.57 | 57.28 | 19.09 | 147.94 | -0.35 | 143.93 | -78.63 | 88.93 | 0.9814 | 447.4 | 143.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
