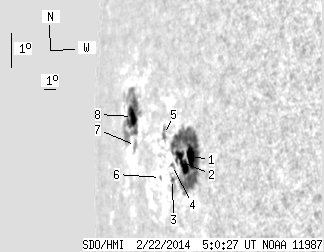

SDO HMI 2014-02-22 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.81 | 191.03 | 62.68 | 357.44 | -1.55 | 147.37 | -74.65 | 89.66 | 0.9639 | -104.9 | -7.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-22 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.29 | 117.32 | 14.48 | 187.00 | -2.30 | 150.40 | -71.62 | 90.05 | 0.9496 | -708.0 | -170.0 | |
| 13.59 | -1.00 | 22.09 | -1.00 | -2.38 | 149.61 | -72.41 | 90.24 | 0.9538 | -311.4 | 999999 | |
| 0.69 | 7.14 | 1.18 | 12.23 | -2.76 | 148.52 | -73.50 | 90.77 | 0.9591 | -243.5 | -82.1 | |
| 0.00 | 2.49 | 0.00 | 4.28 | -2.35 | 148.58 | -73.44 | 90.33 | 0.9590 | -67.0 | -9.0 | |
| 0.00 | 4.90 | 0.00 | 8.91 | -1.33 | 147.83 | -74.19 | 89.37 | 0.9632 | 522.0 | 452.1 | |
| 0.00 | 1.12 | 0.00 | 2.09 | -2.55 | 147.22 | -74.79 | 90.70 | 0.9653 | 105.0 | 133.5 | |
| 0.00 | 4.30 | 0.00 | 10.11 | -1.22 | 144.21 | -77.81 | 89.72 | 0.9782 | 464.0 | 436.6 | |
| 10.24 | 53.76 | 24.93 | 132.82 | -0.31 | 143.83 | -78.19 | 88.83 | 0.9800 | 377.0 | 144.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
