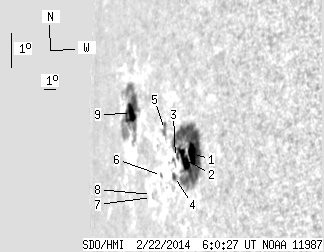

SDO HMI 2014-02-22 06:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.37 | 196.73 | 60.11 | 358.89 | -1.48 | 147.28 | -74.20 | 89.54 | 0.9617 | -104.3 | -11.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-22 06:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.55 | 120.60 | 14.45 | 186.03 | -2.30 | 150.40 | -71.07 | 89.99 | 0.9466 | -723.6 | -180.7 | |
| 12.04 | -1.00 | 18.91 | -1.00 | -2.40 | 149.73 | -71.75 | 90.18 | 0.9502 | -344.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 1.70 | -2.24 | 148.86 | -72.61 | 90.11 | 0.9549 | 181.0 | 111.5 | |
| 1.20 | 2.92 | 2.00 | 4.85 | -2.79 | 148.68 | -72.79 | 90.71 | 0.9555 | -285.9 | -162.0 | |
| 0.00 | 5.25 | 0.00 | 9.22 | -1.27 | 147.82 | -73.66 | 89.25 | 0.9607 | 577.0 | 478.5 | |
| 0.00 | 1.46 | 0.00 | 2.62 | -2.59 | 147.33 | -74.14 | 90.67 | 0.9623 | 3.0 | 87.2 | |
| 0.00 | 0.69 | 0.00 | 1.32 | -3.10 | 146.08 | -75.39 | 91.34 | 0.9677 | 217.0 | 250.5 | |
| 0.00 | 0.69 | 0.00 | 1.32 | -3.02 | 146.10 | -75.38 | 91.25 | 0.9676 | 164.0 | 238.5 | |
| 10.58 | 64.09 | 24.75 | 151.83 | -0.31 | 143.84 | -77.64 | 88.77 | 0.9780 | 388.1 | 151.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
