SDO HMI 2014-02-22 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.61 | 198.97 | 55.53 | 351.78 | -1.45 | 147.28 | -73.64 | 89.44 | 0.9590 | -131.5 | -11.1 | |
|
previous
or next observation for the same group /

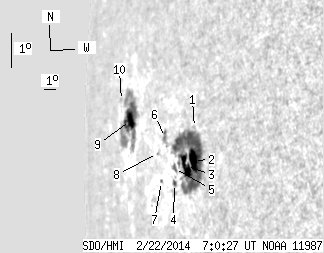

back to the solar disc SDO HMI 2014-02-22 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 2.27 | -1.35 | 150.66 | -70.27 | 88.89 | 0.9427 | -208.0 | -200.4 | |
| 10.07 | 117.86 | 14.83 | 176.78 | -2.32 | 150.48 | -70.45 | 89.93 | 0.9430 | -687.3 | -182.4 | |
| 11.70 | -2.00 | 17.80 | -2.00 | -2.42 | 149.83 | -71.10 | 90.12 | 0.9467 | -361.2 | 999999 | |
| 1.03 | 2.58 | 1.66 | 4.16 | -2.78 | 148.62 | -72.31 | 90.65 | 0.9530 | -288.0 | -191.6 | |
| 0.95 | 3.18 | 1.52 | 5.12 | -2.34 | 148.69 | -72.24 | 90.18 | 0.9529 | -111.0 | -37.2 | |
| 0.00 | 5.33 | 0.00 | 9.07 | -1.32 | 147.88 | -73.04 | 89.21 | 0.9577 | 482.0 | 493.8 | |
| 0.00 | 1.20 | 0.00 | 2.09 | -2.57 | 147.31 | -73.61 | 90.58 | 0.9597 | 21.0 | 43.2 | |
| 0.00 | 0.69 | 0.00 | 1.23 | -1.69 | 147.00 | -73.93 | 89.71 | 0.9618 | 85.0 | 121.9 | |
| 8.86 | 64.95 | 19.72 | 146.99 | -0.32 | 143.82 | -77.10 | 88.71 | 0.9760 | 461.6 | 157.8 | |
| 0.00 | 1.63 | 0.00 | 4.07 | 0.44 | 142.53 | -78.39 | 88.11 | 0.9810 | -175.0 | -179.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
