SDO HMI 2014-02-22 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.60 | 208.62 | 53.97 | 343.21 | -1.51 | 147.39 | -72.45 | 89.35 | 0.9530 | -102.0 | -49.8 | |
|
previous
or next observation for the same group /

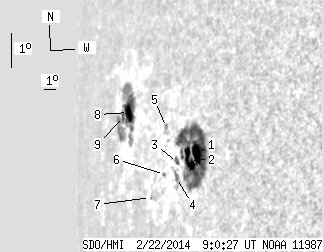

back to the solar disc SDO HMI 2014-02-22 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.20 | 128.27 | 12.85 | 181.67 | -2.29 | 150.52 | -69.32 | 89.77 | 0.9364 | -711.7 | -202.6 | |
| 11.27 | -1.00 | 16.19 | -1.00 | -2.43 | 149.89 | -69.94 | 89.99 | 0.9400 | -349.8 | 999999 | |
| 0.52 | 3.53 | 0.78 | 5.35 | -2.36 | 148.82 | -71.02 | 90.05 | 0.9463 | -194.8 | -66.9 | |
| 0.00 | 4.99 | 0.00 | 7.57 | -2.80 | 148.67 | -71.17 | 90.52 | 0.9468 | -337.0 | -201.4 | |
| 0.00 | 2.49 | 0.00 | 4.00 | -1.21 | 147.89 | -71.95 | 88.96 | 0.9521 | 539.0 | 496.6 | |
| 0.00 | 1.55 | 0.00 | 2.50 | -2.57 | 147.54 | -72.29 | 90.43 | 0.9530 | -29.0 | 27.8 | |
| 0.00 | 1.03 | 0.00 | 1.81 | -3.08 | 146.01 | -73.83 | 91.14 | 0.9605 | 265.0 | 279.2 | |
| 9.89 | 66.76 | 20.41 | 140.31 | -0.26 | 143.76 | -76.08 | 88.52 | 0.9720 | 454.5 | 136.0 | |
| 1.72 | -8.00 | 3.74 | -8.00 | -0.30 | 143.11 | -76.72 | 88.64 | 0.9746 | -178.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
