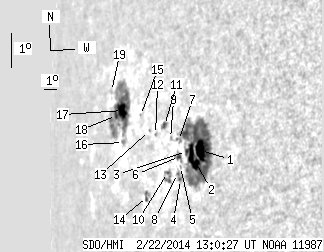

SDO HMI 2014-02-22 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.92 | 246.81 | 62.15 | 363.26 | -1.50 | 147.34 | -70.30 | 89.08 | 0.9412 | -135.5 | -44.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-22 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.47 | 137.08 | 15.76 | 175.08 | -2.26 | 150.63 | -67.01 | 89.44 | 0.9216 | -732.5 | -206.2 | |
| 13.50 | -1.00 | 17.46 | -1.00 | -2.43 | 150.07 | -67.57 | 89.70 | 0.9252 | -402.2 | 999999 | |
| 1.12 | -1.00 | 1.48 | -1.00 | -2.16 | 149.54 | -68.11 | 89.48 | 0.9289 | 42.5 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.98 | -2.94 | 148.96 | -68.69 | 90.38 | 0.9320 | -180.0 | -237.4 | |
| 0.00 | 0.86 | 0.00 | 1.16 | -2.55 | 149.01 | -68.64 | 89.96 | 0.9320 | -356.0 | -333.9 | |
| 1.38 | 4.99 | 1.87 | 6.78 | -2.25 | 148.96 | -68.69 | 89.64 | 0.9325 | -273.8 | -135.8 | |
| 0.00 | 2.92 | 0.00 | 3.98 | -1.76 | 148.92 | -68.72 | 89.13 | 0.9331 | -142.0 | -64.7 | |
| 0.00 | 1.55 | 0.00 | 2.11 | -2.73 | 148.74 | -68.91 | 90.18 | 0.9335 | -264.0 | -278.0 | |
| 0.00 | 1.20 | 0.00 | 1.69 | -1.63 | 148.26 | -69.39 | 89.07 | 0.9373 | 91.0 | 152.0 | |
| 0.34 | 8.00 | 0.49 | 11.33 | -2.60 | 147.90 | -69.75 | 90.15 | 0.9387 | -209.2 | 4.9 | |
| 1.38 | 3.70 | 1.98 | 5.34 | -1.18 | 147.77 | -69.87 | 88.66 | 0.9405 | 356.2 | 207.7 | |
| 0.00 | 0.60 | 0.00 | 0.90 | -1.35 | 146.95 | -70.69 | 88.95 | 0.9451 | 96.0 | 73.1 | |
| 0.00 | 0.86 | 0.00 | 1.32 | -1.17 | 146.41 | -71.23 | 88.83 | 0.9483 | 10.0 | 35.2 | |
| 0.00 | 4.04 | 0.00 | 6.29 | -3.10 | 146.00 | -71.64 | 90.90 | 0.9493 | 528.0 | 355.1 | |
| 0.00 | 0.69 | 0.00 | 1.11 | -0.62 | 145.58 | -72.07 | 88.37 | 0.9531 | 485.0 | 447.9 | |
| 0.00 | 1.63 | 0.00 | 2.91 | -1.22 | 143.79 | -73.85 | 89.22 | 0.9617 | 401.0 | 403.0 | |
| 10.41 | 75.25 | 18.76 | 137.42 | -0.25 | 143.73 | -73.91 | 88.23 | 0.9625 | 448.4 | 118.2 | |
| 2.32 | -17.00 | 4.35 | -17.00 | -0.32 | 143.06 | -74.58 | 88.39 | 0.9656 | -64.9 | 999999 | |
| 0.00 | 1.98 | 0.00 | 3.86 | 0.47 | 142.48 | -75.17 | 87.65 | 0.9686 | -226.0 | -166.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
