SDO HMI 2014-02-22 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.05 | 281.46 | 61.75 | 390.87 | -1.57 | 147.48 | -69.06 | 88.98 | 0.9339 | -130.6 | -37.7 | |
|
previous
or next observation for the same group /

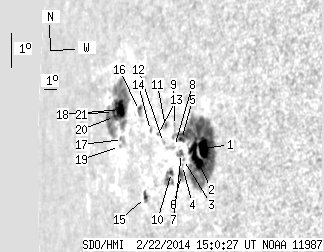

back to the solar disc SDO HMI 2014-02-22 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.09 | 159.05 | 13.40 | 194.73 | -2.21 | 150.67 | -65.88 | 89.25 | 0.9138 | -773.4 | -198.2 | |
| 17.02 | -1.00 | 21.02 | -1.00 | -2.42 | 150.13 | -66.42 | 89.54 | 0.9174 | -404.3 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.99 | -2.37 | 149.13 | -67.41 | 89.61 | 0.9242 | -437.0 | -328.9 | |
| 0.00 | 1.03 | 0.00 | 1.33 | -2.54 | 149.04 | -67.51 | 89.80 | 0.9247 | -421.0 | -379.8 | |
| 1.38 | -1.00 | 1.78 | -1.00 | -1.76 | 149.03 | -67.51 | 88.97 | 0.9253 | -218.1 | 999999 | |
| 0.00 | 5.16 | 0.00 | 6.67 | -2.79 | 148.93 | -67.62 | 90.09 | 0.9252 | -478.0 | -317.1 | |
| 0.86 | 4.47 | 1.11 | 5.81 | -2.17 | 149.00 | -67.55 | 89.42 | 0.9252 | -361.6 | -131.2 | |
| 0.00 | 1.03 | 0.00 | 1.36 | -1.90 | 148.46 | -68.08 | 89.19 | 0.9289 | 340.0 | 311.4 | |
| 0.00 | 1.55 | 0.00 | 2.05 | -1.28 | 148.51 | -68.04 | 88.52 | 0.9291 | 435.0 | 407.1 | |
| 1.12 | 11.52 | 1.50 | 15.52 | -2.64 | 148.14 | -68.40 | 90.03 | 0.9304 | -241.5 | 132.9 | |
| 0.00 | 2.49 | 0.00 | 3.42 | -1.22 | 147.78 | -68.77 | 88.56 | 0.9338 | 317.0 | 130.9 | |
| 0.00 | 0.77 | 0.00 | 1.06 | -1.68 | 147.58 | -68.97 | 89.07 | 0.9347 | 405.0 | 347.0 | |
| 0.00 | 1.38 | 0.00 | 1.94 | -1.38 | 147.09 | -69.45 | 88.82 | 0.9379 | -71.0 | -10.9 | |
| 0.00 | 1.20 | 0.00 | 1.74 | -1.19 | 146.49 | -70.05 | 88.70 | 0.9415 | -92.0 | 34.1 | |
| 1.03 | 4.64 | 1.53 | 6.88 | -3.12 | 145.83 | -70.71 | 90.81 | 0.9440 | 363.9 | 289.2 | |
| 0.00 | 4.38 | 0.00 | 6.69 | -0.48 | 145.53 | -71.01 | 88.08 | 0.9475 | 587.0 | 439.5 | |
| 0.00 | 4.30 | 0.00 | 7.14 | -1.15 | 143.85 | -72.69 | 89.00 | 0.9560 | 492.0 | 405.7 | |
| 9.63 | 76.17 | 16.28 | 130.93 | -0.23 | 143.69 | -72.86 | 88.06 | 0.9574 | 519.4 | 94.3 | |
| 0.00 | 1.55 | 0.00 | 2.61 | -1.32 | 143.53 | -73.01 | 89.22 | 0.9575 | 367.0 | 336.7 | |
| 1.89 | -18.00 | 3.32 | -18.00 | -0.37 | 143.06 | -73.48 | 88.29 | 0.9604 | 25.5 | 999999 | |
| 1.03 | -18.00 | 1.81 | -18.00 | -0.21 | 142.96 | -73.59 | 88.13 | 0.9610 | -87.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
