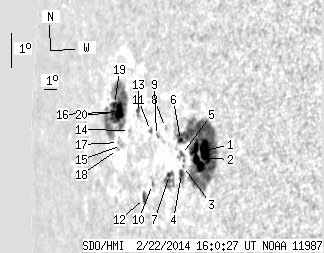

SDO HMI 2014-02-22 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.97 | 292.29 | 63.55 | 394.88 | -1.55 | 147.56 | -68.44 | 88.88 | 0.9300 | -128.6 | -46.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-22 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.43 | 168.41 | 13.51 | 201.64 | -2.22 | 150.69 | -65.30 | 89.18 | 0.9097 | -800.6 | -197.0 | |
| 17.28 | -1.00 | 20.83 | -1.00 | -2.37 | 150.17 | -65.83 | 89.41 | 0.9133 | -431.0 | 999999 | |
| 0.00 | 0.95 | 0.00 | 1.19 | -2.52 | 149.10 | -66.89 | 89.70 | 0.9206 | -454.0 | -443.0 | |
| 1.98 | 6.45 | 2.50 | 8.14 | -2.71 | 148.93 | -67.06 | 89.93 | 0.9216 | -435.9 | -284.4 | |
| 0.60 | 5.67 | 0.76 | 7.16 | -2.14 | 148.99 | -67.01 | 89.31 | 0.9217 | -356.3 | -234.2 | |
| 1.98 | -1.00 | 2.51 | -1.00 | -1.72 | 148.94 | -67.05 | 88.86 | 0.9223 | -129.0 | 999999 | |
| 1.12 | 12.89 | 1.47 | 16.92 | -2.63 | 147.99 | -68.00 | 89.96 | 0.9278 | -99.4 | 94.0 | |
| 0.00 | 1.38 | 0.00 | 1.83 | -1.20 | 147.79 | -68.20 | 88.46 | 0.9302 | 345.0 | 289.5 | |
| 0.00 | 0.52 | 0.00 | 0.71 | -1.35 | 147.04 | -68.95 | 88.72 | 0.9348 | -53.0 | -75.3 | |
| 0.00 | 1.03 | 0.00 | 1.44 | -2.76 | 146.57 | -69.43 | 90.28 | 0.9367 | 328.0 | 344.7 | |
| 0.00 | 2.15 | 0.00 | 3.03 | -1.14 | 146.55 | -69.45 | 88.56 | 0.9380 | -43.0 | 49.8 | |
| 2.15 | 4.64 | 3.11 | 6.71 | -3.09 | 145.82 | -70.17 | 90.72 | 0.9409 | 440.7 | 333.7 | |
| 0.00 | 3.70 | 0.00 | 5.51 | -0.48 | 145.52 | -70.47 | 88.01 | 0.9445 | 527.0 | 468.8 | |
| 0.00 | 1.29 | 0.00 | 2.00 | -0.92 | 144.68 | -71.32 | 88.58 | 0.9489 | 301.0 | 314.7 | |
| 0.00 | 0.86 | 0.00 | 1.38 | -1.28 | 143.89 | -72.11 | 89.05 | 0.9529 | 428.0 | 400.3 | |
| 9.20 | 80.55 | 15.07 | 134.26 | -0.24 | 143.73 | -72.26 | 87.99 | 0.9544 | 583.8 | 105.4 | |
| 0.00 | 0.77 | 0.00 | 1.27 | -1.15 | 143.60 | -72.40 | 88.96 | 0.9545 | 416.0 | 360.7 | |
| 0.00 | 1.03 | 0.00 | 1.69 | -1.35 | 143.48 | -72.51 | 89.18 | 0.9550 | 270.0 | 247.9 | |
| 1.63 | -16.00 | 2.76 | -16.00 | 0.03 | 143.23 | -72.76 | 87.78 | 0.9571 | 42.1 | 999999 | |
| 0.60 | -16.00 | 1.03 | -16.00 | -0.22 | 143.03 | -72.97 | 88.06 | 0.9580 | -175.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
