SDO HMI 2014-02-22 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.40 | 319.65 | 82.52 | 394.01 | -1.48 | 147.55 | -66.23 | 88.51 | 0.9153 | -141.1 | -87.9 | |
|
previous
or next observation for the same group /

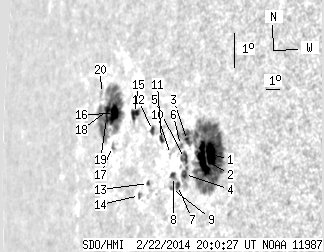

back to the solar disc SDO HMI 2014-02-22 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.81 | 176.98 | 13.91 | 194.63 | -2.25 | 150.83 | -62.95 | 88.90 | 0.8920 | -991.7 | -253.5 | |
| 20.20 | -1.00 | 22.32 | -1.00 | -2.35 | 150.36 | -63.43 | 89.07 | 0.8956 | -465.9 | 999999 | |
| 2.15 | -1.00 | 2.47 | -1.00 | -1.66 | 149.32 | -64.47 | 88.45 | 0.9041 | -303.9 | 999999 | |
| 2.58 | 17.96 | 2.98 | 20.75 | -2.65 | 149.03 | -64.76 | 89.57 | 0.9054 | -543.7 | -336.9 | |
| 2.92 | -4.00 | 3.38 | -4.00 | -2.17 | 149.07 | -64.72 | 89.04 | 0.9055 | -396.9 | 999999 | |
| 0.00 | 3.35 | 0.00 | 3.93 | -1.76 | 148.82 | -64.97 | 88.62 | 0.9077 | 459.0 | 313.3 | |
| 1.89 | 3.95 | 2.23 | 4.66 | -2.92 | 148.50 | -65.29 | 89.93 | 0.9090 | -320.9 | -113.1 | |
| 0.00 | 3.78 | 0.00 | 4.50 | -2.62 | 148.24 | -65.54 | 89.64 | 0.9111 | -349.0 | -179.9 | |
| 0.00 | 1.38 | 0.00 | 1.65 | -2.96 | 148.06 | -65.73 | 90.03 | 0.9121 | 290.0 | 209.6 | |
| 0.00 | 0.77 | 0.00 | 0.93 | -1.94 | 148.09 | -65.70 | 88.92 | 0.9128 | 354.0 | 287.8 | |
| 1.72 | 2.92 | 2.12 | 3.60 | -1.42 | 147.46 | -66.33 | 88.44 | 0.9177 | -112.8 | 28.6 | |
| 1.72 | 3.44 | 2.18 | 4.36 | -1.08 | 146.79 | -66.99 | 88.15 | 0.9225 | -110.6 | 32.0 | |
| 0.77 | 1.81 | 0.99 | 2.32 | -2.61 | 146.36 | -67.43 | 89.87 | 0.9241 | 475.3 | 413.3 | |
| 0.00 | 1.89 | 0.00 | 2.50 | -2.88 | 145.61 | -68.18 | 90.25 | 0.9288 | 465.0 | 325.8 | |
| 4.99 | 8.42 | 6.73 | 11.38 | -0.40 | 145.39 | -68.40 | 87.63 | 0.9321 | 601.2 | 496.2 | |
| 9.63 | 88.53 | 14.12 | 132.02 | -0.21 | 143.70 | -70.09 | 87.66 | 0.9425 | 695.6 | 111.8 | |
| 0.00 | 2.15 | 0.00 | 3.15 | -1.17 | 143.48 | -70.30 | 88.70 | 0.9430 | 324.0 | 367.4 | |
| 3.18 | -16.00 | 4.80 | -16.00 | -0.04 | 143.07 | -70.72 | 87.57 | 0.9462 | 105.4 | 999999 | |
| 2.84 | -16.00 | 4.29 | -16.00 | -0.27 | 142.98 | -70.81 | 87.82 | 0.9466 | 79.2 | 999999 | |
| 0.00 | 2.32 | 0.00 | 3.63 | 0.53 | 142.51 | -71.28 | 87.04 | 0.9497 | -258.0 | -240.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
