SDO HMI 2014-02-22 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.04 | 331.90 | 81.25 | 399.58 | -1.50 | 147.58 | -65.66 | 88.45 | 0.9114 | -110.1 | -98.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-22 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

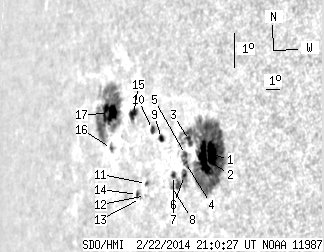

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.46 | 186.27 | 13.28 | 200.88 | -2.25 | 150.87 | -62.37 | 88.82 | 0.8874 | -1043.7 | -255.0 | |
| 18.48 | -1.00 | 20.03 | -1.00 | -2.32 | 150.34 | -62.89 | 88.96 | 0.8915 | -496.4 | 999999 | |
| 3.01 | -1.00 | 3.37 | -1.00 | -1.68 | 149.45 | -63.78 | 88.37 | 0.8990 | -310.4 | 999999 | |
| 0.77 | 8.51 | 0.87 | 9.63 | -2.30 | 149.14 | -64.10 | 89.10 | 0.9008 | -567.8 | -356.1 | |
| 1.38 | -4.00 | 1.56 | -4.00 | -2.06 | 149.15 | -64.08 | 88.84 | 0.9009 | -428.2 | 999999 | |
| 1.20 | 17.97 | 1.36 | 20.55 | -2.68 | 149.03 | -64.20 | 89.53 | 0.9012 | -542.4 | -296.2 | |
| 1.46 | -6.00 | 1.70 | -6.00 | -2.59 | 148.27 | -64.97 | 89.53 | 0.9070 | -219.4 | 999999 | |
| 0.00 | 2.32 | 0.00 | 2.71 | -2.90 | 148.10 | -65.14 | 89.89 | 0.9080 | 306.0 | 236.0 | |
| 2.32 | 3.61 | 2.80 | 4.35 | -1.40 | 147.50 | -65.74 | 88.33 | 0.9135 | -84.7 | 91.5 | |
| 2.06 | 3.44 | 2.55 | 4.25 | -1.05 | 146.85 | -66.38 | 88.05 | 0.9183 | -130.0 | 34.7 | |
| 0.00 | 1.72 | 0.00 | 2.16 | -2.60 | 146.28 | -66.96 | 89.80 | 0.9210 | 602.0 | 505.9 | |
| 0.00 | 1.12 | 0.00 | 1.41 | -2.95 | 146.16 | -67.08 | 90.19 | 0.9215 | 519.0 | 474.8 | |
| 0.00 | 1.12 | 0.00 | 1.43 | -2.99 | 145.77 | -67.47 | 90.28 | 0.9241 | 493.0 | 466.5 | |
| 1.12 | 2.75 | 1.45 | 3.56 | -2.85 | 145.55 | -67.69 | 90.15 | 0.9257 | 265.5 | 228.7 | |
| 4.99 | 8.60 | 6.59 | 11.35 | -0.44 | 145.41 | -67.83 | 87.59 | 0.9285 | 625.4 | 489.6 | |
| 0.77 | 3.27 | 1.10 | 4.66 | -1.24 | 143.55 | -69.69 | 88.69 | 0.9394 | 428.3 | 345.5 | |
| 17.02 | 91.20 | 24.59 | 132.64 | -0.18 | 143.41 | -69.83 | 87.58 | 0.9410 | 463.9 | 100.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
