SDO HMI 2014-02-23 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.92 | 54.63 | 27.64 | 136.26 | 9.03 | 133.19 | -76.75 | 79.17 | 0.9792 | 205.6 | -64.3 | |
|
previous
or next observation for the same group /

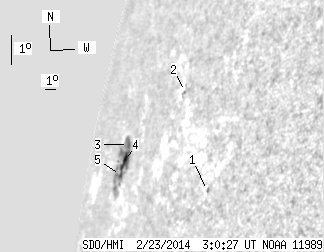

back to the solar disc SDO HMI 2014-02-23 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 2.52 | 6.89 | 141.98 | -67.96 | 79.83 | 0.9365 | -296.0 | -170.8 | |
| 0.00 | 4.56 | 0.00 | 7.77 | 10.31 | 138.65 | -71.29 | 76.91 | 0.9580 | 364.0 | 262.1 | |
| 2.67 | 48.26 | 6.72 | 125.97 | 9.40 | 132.78 | -77.16 | 78.87 | 0.9812 | 212.9 | -87.4 | |
| 7.05 | -3.00 | 17.82 | -3.00 | 8.92 | 132.71 | -77.23 | 79.37 | 0.9812 | 238.4 | 999999 | |
| 1.20 | -3.00 | 3.10 | -3.00 | 8.52 | 132.29 | -77.66 | 79.84 | 0.9824 | 111.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
