SDO HMI 2014-02-23 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.15 | 365.67 | 79.05 | 381.98 | -1.45 | 147.80 | -61.59 | 87.82 | 0.8803 | -178.1 | -138.9 | |
|
previous
or next observation for the same group /

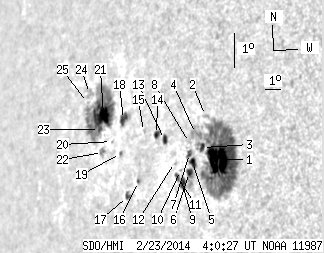

back to the solar disc SDO HMI 2014-02-23 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.18 | 195.66 | 30.52 | 185.08 | -2.26 | 150.85 | -58.54 | 88.29 | 0.8548 | -856.4 | -379.1 | |
| 0.00 | 2.58 | 0.00 | 2.50 | -0.88 | 150.22 | -59.17 | 86.78 | 0.8620 | 382.0 | 282.4 | |
| 2.41 | -1.00 | 2.34 | -1.00 | -1.81 | 150.01 | -59.39 | 87.89 | 0.8628 | -344.1 | 999999 | |
| 0.00 | 7.40 | 0.00 | 7.29 | -1.35 | 149.62 | -59.78 | 87.42 | 0.8667 | 77.0 | 101.9 | |
| 3.70 | 24.78 | 3.66 | 24.74 | -2.19 | 149.39 | -60.00 | 88.42 | 0.8678 | -561.2 | -313.0 | |
| 3.18 | -5.00 | 3.16 | -5.00 | -2.47 | 149.19 | -60.20 | 88.76 | 0.8692 | -623.1 | 999999 | |
| 1.55 | 3.27 | 1.54 | 3.26 | -1.91 | 149.23 | -60.16 | 88.11 | 0.8695 | -425.2 | -238.1 | |
| 0.00 | 1.46 | 0.00 | 1.46 | -1.58 | 149.25 | -60.15 | 87.74 | 0.8697 | 137.0 | 157.0 | |
| 3.79 | -5.00 | 3.81 | -5.00 | -2.75 | 148.74 | -60.65 | 89.14 | 0.8728 | -409.8 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.44 | -2.35 | 148.65 | -60.74 | 88.70 | 0.8739 | -335.0 | -320.6 | |
| 1.38 | -5.00 | 1.40 | -5.00 | -2.51 | 148.46 | -60.94 | 88.91 | 0.8754 | -194.9 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.35 | -2.08 | 148.30 | -61.09 | 88.44 | 0.8771 | -136.0 | -116.0 | |
| 2.75 | 4.30 | 2.88 | 4.49 | -1.32 | 147.72 | -61.67 | 87.67 | 0.8827 | -272.8 | -97.6 | |
| 2.41 | 3.87 | 2.56 | 4.11 | -1.12 | 147.22 | -62.18 | 87.51 | 0.8870 | -214.4 | -95.7 | |
| 0.00 | 0.77 | 0.00 | 0.85 | -0.94 | 146.38 | -63.02 | 87.43 | 0.8938 | -270.0 | -182.7 | |
| 0.60 | 1.55 | 0.67 | 1.71 | -2.38 | 145.96 | -63.43 | 89.10 | 0.8956 | 498.0 | 462.6 | |
| 1.72 | 3.61 | 1.95 | 4.09 | -2.75 | 145.18 | -64.22 | 89.60 | 0.9013 | 491.5 | 353.5 | |
| 4.90 | 6.80 | 5.64 | 7.82 | -0.43 | 145.04 | -64.36 | 87.06 | 0.9045 | 652.7 | 518.9 | |
| 0.52 | 1.72 | 0.60 | 1.99 | -1.42 | 144.80 | -64.60 | 88.19 | 0.9053 | 573.2 | 489.5 | |
| 0.00 | 0.60 | 0.00 | 0.71 | -0.99 | 144.18 | -65.22 | 87.80 | 0.9102 | 615.0 | 549.7 | |
| 13.34 | 96.20 | 16.21 | 118.20 | -0.14 | 143.62 | -65.78 | 86.97 | 0.9150 | 744.5 | 145.4 | |
| 0.00 | 4.39 | 0.00 | 5.33 | -1.24 | 143.51 | -65.88 | 88.17 | 0.9147 | 559.0 | 440.0 | |
| 1.72 | -21.00 | 2.11 | -21.00 | -0.53 | 143.32 | -66.08 | 87.43 | 0.9167 | 463.0 | 999999 | |
| 0.00 | 5.42 | 0.00 | 6.90 | 0.64 | 142.57 | -66.83 | 86.28 | 0.9229 | -241.0 | -170.5 | |
| 0.00 | 0.52 | 0.00 | 0.66 | 0.38 | 142.42 | -66.98 | 86.57 | 0.9236 | -222.0 | -248.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
