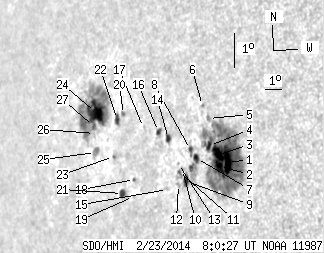

SDO HMI 2014-02-23 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.10 | 380.42 | 76.94 | 370.90 | -1.48 | 147.85 | -59.36 | 87.53 | 0.8614 | -27.0 | -177.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-23 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.24 | 205.53 | 9.06 | 182.77 | -2.41 | 151.25 | -55.96 | 88.10 | 0.8305 | -1160.0 | -374.0 | |
| 6.63 | -1.00 | 5.93 | -1.00 | -2.48 | 150.82 | -56.39 | 88.25 | 0.8346 | -661.5 | 999999 | |
| 10.33 | -1.00 | 9.25 | -1.00 | -2.12 | 150.79 | -56.42 | 87.82 | 0.8353 | -698.0 | 999999 | |
| 3.18 | -1.00 | 2.89 | -1.00 | -1.80 | 150.32 | -56.90 | 87.51 | 0.8402 | -346.6 | 999999 | |
| 0.00 | 2.58 | 0.00 | 2.35 | -0.99 | 150.29 | -56.92 | 86.56 | 0.8414 | 85.0 | 69.8 | |
| 0.00 | 1.29 | 0.00 | 1.19 | -0.57 | 149.97 | -57.24 | 86.12 | 0.8450 | 586.0 | 423.1 | |
| 3.18 | 26.77 | 2.95 | 24.94 | -2.11 | 149.58 | -57.63 | 87.99 | 0.8467 | -662.7 | -439.9 | |
| 1.46 | -7.00 | 1.37 | -7.00 | -1.81 | 149.26 | -57.95 | 87.68 | 0.8500 | -367.4 | 999999 | |
| 3.79 | -7.00 | 3.56 | -7.00 | -2.74 | 148.97 | -58.24 | 88.81 | 0.8516 | -437.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.89 | -2.36 | 148.77 | -58.44 | 88.39 | 0.8538 | -410.0 | -352.7 | |
| 0.60 | 3.87 | 0.57 | 3.68 | -2.43 | 148.59 | -58.62 | 88.50 | 0.8553 | -224.1 | -95.1 | |
| 0.00 | 2.07 | 0.00 | 1.96 | -2.78 | 148.51 | -58.70 | 88.92 | 0.8557 | 196.0 | 90.9 | |
| 0.00 | 0.69 | 0.00 | 0.66 | -2.15 | 148.56 | -58.66 | 88.19 | 0.8560 | -166.0 | -143.5 | |
| 2.58 | 4.13 | 2.50 | 4.01 | -1.35 | 148.02 | -59.19 | 87.33 | 0.8617 | -301.2 | -150.3 | |
| 0.00 | 0.52 | 0.00 | 0.50 | -2.86 | 147.86 | -59.35 | 89.10 | 0.8614 | 251.0 | 174.3 | |
| 1.81 | 3.79 | 1.78 | 3.73 | -1.08 | 147.44 | -59.77 | 87.11 | 0.8670 | -338.1 | -185.5 | |
| 0.00 | 0.60 | 0.00 | 0.61 | -0.86 | 146.54 | -60.67 | 87.00 | 0.8749 | -268.0 | -193.7 | |
| 0.43 | 1.29 | 0.44 | 1.33 | -2.35 | 145.91 | -61.30 | 88.77 | 0.8786 | 399.8 | 411.2 | |
| 0.00 | 0.69 | 0.00 | 0.71 | -2.84 | 145.80 | -61.41 | 89.35 | 0.8790 | 482.0 | 436.6 | |
| 0.60 | 1.81 | 0.64 | 1.91 | -0.33 | 145.30 | -61.91 | 86.59 | 0.8857 | 655.3 | 606.1 | |
| 2.93 | 4.73 | 3.09 | 4.99 | -2.68 | 145.12 | -62.09 | 89.25 | 0.8847 | 487.0 | 291.4 | |
| 3.18 | 5.16 | 3.41 | 5.53 | -0.44 | 144.92 | -62.29 | 86.77 | 0.8886 | 563.0 | 460.1 | |
| 0.00 | 1.38 | 0.00 | 1.48 | -1.52 | 144.62 | -62.59 | 88.02 | 0.8899 | 692.0 | 544.1 | |
| 24.01 | 105.69 | 27.07 | 119.93 | -0.07 | 143.47 | -63.74 | 86.58 | 0.9003 | 632.0 | 83.5 | |
| 0.00 | 6.02 | 0.00 | 6.76 | -1.26 | 143.44 | -63.77 | 87.91 | 0.8993 | 420.0 | 362.6 | |
| 0.00 | 0.86 | 0.00 | 0.97 | -0.69 | 143.39 | -63.82 | 87.28 | 0.9002 | 415.0 | 402.6 | |
| 2.15 | -24.00 | 2.43 | -24.00 | -0.47 | 143.33 | -63.88 | 87.05 | 0.9009 | 485.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
