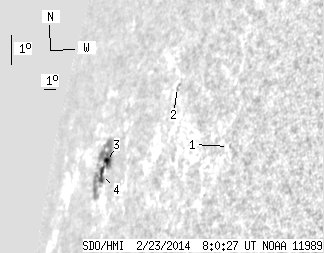

SDO HMI 2014-02-23 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.92 | 51.21 | 16.52 | 106.29 | 8.76 | 132.63 | -74.58 | 79.08 | 0.9711 | 200.8 | -38.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-23 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.61 | 8.12 | 143.39 | -63.82 | 77.67 | 0.9112 | -238.0 | -208.0 | |
| 0.00 | 2.41 | 0.00 | 3.56 | 10.48 | 138.66 | -68.55 | 76.19 | 0.9439 | 353.0 | 337.9 | |
| 2.67 | 48.28 | 5.48 | 102.12 | 8.93 | 132.70 | -74.51 | 78.91 | 0.9712 | 427.3 | -52.4 | |
| 5.25 | -3.00 | 11.04 | -3.00 | 8.59 | 132.19 | -75.02 | 79.33 | 0.9730 | 114.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
