SDO HMI 2014-02-23 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.94 | 432.51 | 76.32 | 372.84 | -1.46 | 148.12 | -54.70 | 86.80 | 0.8178 | -216.1 | -108.5 | |
|
previous
or next observation for the same group /

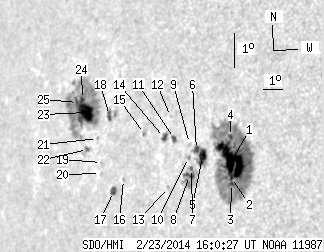

back to the solar disc SDO HMI 2014-02-23 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.10 | 231.70 | 30.41 | 184.80 | -2.28 | 151.20 | -51.62 | 87.28 | 0.7865 | -897.6 | -312.6 | |
| 0.77 | -1.00 | 0.62 | -1.00 | -2.79 | 151.17 | -51.65 | 87.92 | 0.7861 | -701.3 | 999999 | |
| 1.38 | -1.00 | 1.10 | -1.00 | -2.96 | 151.16 | -51.66 | 88.15 | 0.7860 | -636.6 | 999999 | |
| 1.81 | -1.00 | 1.44 | -1.00 | -1.56 | 151.19 | -51.64 | 86.37 | 0.7877 | -542.9 | 999999 | |
| 8.69 | 20.90 | 7.16 | 17.26 | -2.02 | 149.80 | -53.03 | 87.18 | 0.8016 | -729.9 | -422.8 | |
| 2.58 | -5.00 | 2.14 | -5.00 | -1.78 | 149.51 | -53.31 | 86.93 | 0.8049 | -491.1 | 999999 | |
| 0.86 | 22.19 | 0.72 | 18.54 | -2.32 | 149.23 | -53.59 | 87.64 | 0.8071 | -587.9 | -318.9 | |
| 3.35 | -7.00 | 2.81 | -7.00 | -2.52 | 149.12 | -53.70 | 87.90 | 0.8080 | -568.3 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.50 | -1.57 | 149.17 | -53.66 | 86.72 | 0.8087 | -220.0 | -144.0 | |
| 0.00 | 1.46 | 0.00 | 1.22 | -1.98 | 149.10 | -53.72 | 87.24 | 0.8089 | -348.0 | -290.4 | |
| 1.72 | 3.27 | 1.47 | 2.79 | -1.34 | 148.41 | -54.41 | 86.57 | 0.8167 | -453.2 | -258.4 | |
| 0.00 | 0.77 | 0.00 | 0.67 | -0.67 | 148.23 | -54.60 | 85.78 | 0.8195 | 588.0 | 446.9 | |
| 0.00 | 1.12 | 0.00 | 0.96 | -2.77 | 148.03 | -54.79 | 88.37 | 0.8187 | -246.0 | -204.2 | |
| 2.41 | 4.64 | 2.08 | 4.01 | -1.26 | 147.90 | -54.92 | 86.56 | 0.8219 | -433.9 | -207.3 | |
| 0.00 | 2.75 | 0.00 | 2.45 | -1.03 | 146.85 | -55.97 | 86.46 | 0.8324 | 483.0 | 383.4 | |
| 0.00 | 1.03 | 0.00 | 0.94 | -2.28 | 145.66 | -57.17 | 88.13 | 0.8422 | 627.0 | 558.2 | |
| 3.01 | 4.99 | 2.79 | 4.62 | -2.58 | 145.08 | -57.74 | 88.56 | 0.8472 | 594.4 | 378.0 | |
| 2.67 | 7.57 | 2.50 | 7.07 | -0.30 | 144.95 | -57.87 | 85.90 | 0.8511 | 593.0 | 538.1 | |
| 0.00 | 0.95 | 0.00 | 0.89 | -1.65 | 144.46 | -58.37 | 87.56 | 0.8539 | 588.0 | 532.3 | |
| 0.00 | 0.86 | 0.00 | 0.81 | -1.97 | 144.38 | -58.44 | 87.94 | 0.8542 | 534.0 | 451.3 | |
| 0.00 | 1.03 | 0.00 | 0.98 | -0.91 | 144.26 | -58.57 | 86.73 | 0.8566 | 497.0 | 475.5 | |
| 1.03 | 5.33 | 1.00 | 5.18 | -1.18 | 143.67 | -59.15 | 87.13 | 0.8615 | 619.1 | 401.5 | |
| 17.46 | 121.35 | 17.02 | 119.15 | -0.06 | 143.63 | -59.19 | 85.85 | 0.8632 | 772.7 | 168.8 | |
| 1.81 | -23.00 | 1.78 | -23.00 | 0.35 | 143.40 | -59.43 | 85.42 | 0.8658 | 514.2 | 999999 | |
| 1.29 | -23.00 | 1.28 | -23.00 | 0.29 | 143.10 | -59.72 | 85.53 | 0.8682 | 244.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
