SDO HMI 2014-02-23 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.88 | 434.03 | 75.85 | 364.92 | -1.41 | 148.05 | -53.68 | 86.56 | 0.8075 | -228.4 | -116.0 | |
|
previous
or next observation for the same group /

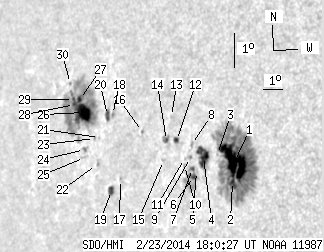

back to the solar disc SDO HMI 2014-02-23 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.88 | 224.36 | 32.61 | 174.40 | -2.28 | 151.29 | -50.44 | 87.08 | 0.7736 | -944.7 | -364.4 | |
| 1.63 | -1.00 | 1.27 | -1.00 | -2.86 | 151.16 | -50.56 | 87.85 | 0.7742 | -560.4 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.48 | -1.99 | 150.50 | -51.23 | 86.84 | 0.7826 | -177.0 | -190.4 | |
| 13.41 | 20.38 | 10.79 | 16.38 | -1.99 | 149.82 | -51.90 | 86.95 | 0.7898 | -698.8 | -448.1 | |
| 0.00 | 1.20 | 0.00 | 0.97 | -2.40 | 149.46 | -52.26 | 87.52 | 0.7931 | -701.0 | -466.9 | |
| 1.72 | 19.86 | 1.40 | 16.17 | -2.53 | 149.31 | -52.41 | 87.72 | 0.7946 | -716.0 | -266.7 | |
| 1.03 | -6.00 | 0.84 | -6.00 | -2.29 | 149.27 | -52.45 | 87.42 | 0.7952 | -635.2 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.82 | -1.57 | 149.26 | -52.46 | 86.52 | 0.7964 | -277.0 | -180.0 | |
| 0.00 | 1.55 | 0.00 | 1.26 | -1.95 | 149.19 | -52.53 | 87.01 | 0.7966 | -464.0 | -350.4 | |
| 0.00 | 0.77 | 0.00 | 0.64 | -2.16 | 148.89 | -52.84 | 87.32 | 0.7995 | -137.0 | -117.2 | |
| 0.00 | 0.52 | 0.00 | 0.42 | -1.96 | 148.90 | -52.83 | 87.06 | 0.7996 | -143.0 | -113.8 | |
| 1.89 | 3.18 | 1.57 | 2.64 | -1.38 | 148.52 | -53.20 | 86.41 | 0.8043 | -465.4 | -297.4 | |
| 0.00 | 1.29 | 0.00 | 1.08 | -0.64 | 148.29 | -53.43 | 85.54 | 0.8078 | 457.0 | 399.5 | |
| 1.38 | 4.82 | 1.16 | 4.04 | -1.33 | 148.02 | -53.70 | 86.43 | 0.8095 | -545.7 | -230.1 | |
| 0.00 | 1.46 | 0.00 | 1.23 | -1.91 | 147.85 | -53.87 | 87.17 | 0.8105 | -562.0 | -382.2 | |
| 0.00 | 0.86 | 0.00 | 0.74 | -0.94 | 146.80 | -54.92 | 86.16 | 0.8223 | 609.0 | 546.9 | |
| 0.00 | 1.03 | 0.00 | 0.92 | -2.24 | 145.59 | -56.13 | 87.92 | 0.8324 | 550.0 | 465.7 | |
| 0.00 | 2.67 | 0.00 | 2.41 | -0.26 | 145.22 | -56.50 | 85.63 | 0.8384 | 736.0 | 607.5 | |
| 3.35 | 5.33 | 3.02 | 4.80 | -2.52 | 145.08 | -56.64 | 88.33 | 0.8369 | 611.5 | 381.7 | |
| 2.58 | 4.82 | 2.35 | 4.38 | -0.26 | 144.95 | -56.77 | 85.67 | 0.8410 | 615.3 | 466.3 | |
| 0.00 | 0.95 | 0.00 | 0.87 | -0.88 | 144.50 | -57.22 | 86.47 | 0.8444 | 483.0 | 443.6 | |
| 0.00 | 0.52 | 0.00 | 0.47 | -1.66 | 144.31 | -57.41 | 87.43 | 0.8452 | 686.0 | 608.5 | |
| 0.00 | 1.38 | 0.00 | 1.27 | -0.88 | 144.23 | -57.49 | 86.51 | 0.8469 | 593.0 | 505.4 | |
| 0.60 | 2.84 | 0.57 | 2.66 | -1.14 | 143.66 | -58.06 | 86.92 | 0.8518 | 685.1 | 591.0 | |
| 0.00 | 1.98 | 0.00 | 1.86 | -1.38 | 143.65 | -58.07 | 87.20 | 0.8516 | 471.0 | 361.5 | |
| 16.85 | 128.47 | 15.91 | 122.09 | -0.03 | 143.62 | -58.10 | 85.63 | 0.8535 | 829.1 | 186.7 | |
| 2.06 | -26.00 | 1.97 | -26.00 | 0.38 | 143.39 | -58.33 | 85.19 | 0.8561 | 539.3 | 999999 | |
| 1.81 | -26.00 | 1.73 | -26.00 | 0.26 | 143.11 | -58.61 | 85.38 | 0.8585 | 267.1 | 999999 | |
| 0.69 | -26.00 | 0.66 | -26.00 | 0.42 | 143.05 | -58.67 | 85.21 | 0.8593 | 283.9 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.92 | 0.92 | 142.87 | -58.85 | 84.67 | 0.8615 | 267.0 | 205.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
