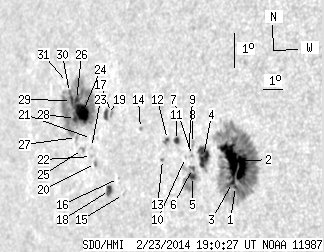

SDO HMI 2014-02-23 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.04 | 446.57 | 78.67 | 369.38 | -1.48 | 148.17 | -52.99 | 86.53 | 0.8004 | -177.5 | -130.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-23 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.95 | 235.70 | 0.73 | 181.08 | -3.02 | 151.29 | -49.87 | 87.94 | 0.7664 | -625.0 | -367.5 | |
| 38.44 | -1.00 | 29.57 | -1.00 | -2.28 | 151.29 | -49.88 | 86.98 | 0.7675 | -960.0 | 999999 | |
| 1.72 | -1.00 | 1.32 | -1.00 | -2.89 | 151.16 | -50.01 | 87.79 | 0.7680 | -597.2 | 999999 | |
| 14.10 | 20.12 | 11.19 | 15.97 | -1.99 | 149.85 | -51.32 | 86.85 | 0.7837 | -701.5 | -392.5 | |
| 3.70 | 28.46 | 2.97 | 22.87 | -2.53 | 149.29 | -51.88 | 87.62 | 0.7889 | -685.8 | -217.7 | |
| 1.20 | -5.00 | 0.97 | -5.00 | -2.29 | 149.30 | -51.87 | 87.32 | 0.7891 | -658.7 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.90 | -1.91 | 149.32 | -51.85 | 86.83 | 0.7894 | -413.0 | -392.5 | |
| 0.00 | 2.58 | 0.00 | 2.07 | -1.55 | 149.34 | -51.83 | 86.38 | 0.7898 | -327.0 | -232.5 | |
| 0.00 | 0.52 | 0.00 | 0.42 | -1.77 | 149.13 | -52.04 | 86.69 | 0.7916 | -173.0 | -174.2 | |
| 0.00 | 1.03 | 0.00 | 0.84 | -1.93 | 148.98 | -52.19 | 86.92 | 0.7930 | -193.0 | -128.4 | |
| 2.32 | 3.87 | 1.90 | 3.17 | -1.38 | 148.56 | -52.61 | 86.31 | 0.7982 | -516.1 | -225.7 | |
| 0.95 | 2.84 | 0.78 | 2.35 | -1.31 | 148.12 | -53.05 | 86.29 | 0.8029 | -523.2 | -412.4 | |
| 0.00 | 1.29 | 0.00 | 1.07 | -1.88 | 147.85 | -53.32 | 87.04 | 0.8049 | -486.0 | -371.3 | |
| 0.00 | 0.86 | 0.00 | 0.74 | -0.84 | 146.77 | -54.40 | 85.95 | 0.8173 | 577.0 | 538.5 | |
| 0.00 | 0.95 | 0.00 | 0.82 | -2.71 | 145.80 | -55.37 | 88.37 | 0.8244 | 506.0 | 450.8 | |
| 0.00 | 0.60 | 0.00 | 0.53 | -2.21 | 145.57 | -55.60 | 87.80 | 0.8273 | 619.0 | 523.9 | |
| 0.00 | 1.89 | 0.00 | 1.68 | -0.21 | 145.26 | -55.91 | 85.45 | 0.8329 | 690.0 | 632.0 | |
| 3.70 | 5.76 | 3.28 | 5.11 | -2.52 | 145.07 | -56.10 | 88.24 | 0.8318 | 589.5 | 342.8 | |
| 3.10 | 4.99 | 2.77 | 4.47 | -0.24 | 144.99 | -56.18 | 85.54 | 0.8354 | 586.4 | 434.2 | |
| 0.00 | 1.55 | 0.00 | 1.40 | -1.64 | 144.36 | -56.81 | 87.30 | 0.8396 | 610.0 | 520.9 | |
| 0.00 | 0.69 | 0.00 | 0.63 | -0.87 | 144.17 | -57.00 | 86.43 | 0.8423 | 561.0 | 578.1 | |
| 0.00 | 1.12 | 0.00 | 1.02 | -1.41 | 144.15 | -57.02 | 87.06 | 0.8418 | 569.0 | 520.0 | |
| 0.00 | 0.69 | 0.00 | 0.63 | -1.14 | 144.16 | -57.01 | 86.74 | 0.8421 | 563.0 | 507.6 | |
| 16.17 | 124.17 | 15.02 | 116.23 | -0.04 | 143.68 | -57.49 | 85.53 | 0.8479 | 884.8 | 189.6 | |
| 0.00 | 2.41 | 0.00 | 2.23 | -1.15 | 143.66 | -57.51 | 86.83 | 0.8467 | 714.0 | 618.4 | |
| 2.58 | -24.00 | 2.42 | -24.00 | 0.38 | 143.35 | -57.82 | 85.10 | 0.8516 | 571.1 | 999999 | |
| 0.00 | 2.67 | 0.00 | 2.49 | -0.75 | 143.34 | -57.83 | 86.42 | 0.8502 | 344.0 | 317.6 | |
| 3.10 | -24.00 | 2.90 | -24.00 | -0.18 | 143.29 | -57.88 | 85.76 | 0.8513 | 418.2 | 999999 | |
| 2.41 | -24.00 | 2.28 | -24.00 | 0.38 | 143.06 | -58.10 | 85.15 | 0.8541 | 277.6 | 999999 | |
| 0.60 | -24.00 | 0.57 | -24.00 | 0.64 | 142.95 | -58.22 | 84.87 | 0.8555 | 333.0 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.66 | 0.95 | 142.83 | -58.34 | 84.53 | 0.8570 | 316.0 | 223.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
