SDO HMI 2014-02-23 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.71 | 71.37 | 14.12 | 105.26 | 8.63 | 132.67 | -68.50 | 78.10 | 0.9412 | 316.7 | -32.0 | |
|
previous
or next observation for the same group /

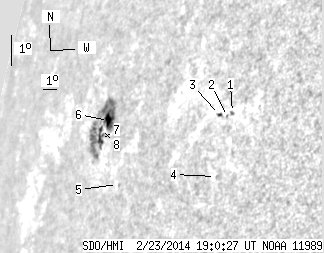

back to the solar disc SDO HMI 2014-02-23 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 1.52 | 8.08 | 141.42 | -59.75 | 76.76 | 0.8806 | -596.0 | -500.9 | |
| 0.00 | 0.34 | 0.00 | 0.36 | 7.99 | 141.14 | -60.03 | 76.93 | 0.8826 | -236.0 | -336.8 | |
| 0.60 | 1.72 | 0.64 | 1.83 | 8.11 | 140.63 | -60.54 | 76.92 | 0.8869 | -465.6 | -387.8 | |
| 0.00 | 0.34 | 0.00 | 0.36 | 6.20 | 140.80 | -60.37 | 78.99 | 0.8823 | 513.0 | 520.0 | |
| 0.00 | 0.69 | 0.00 | 0.93 | 6.74 | 133.98 | -67.18 | 79.84 | 0.9316 | -92.0 | -172.2 | |
| 5.33 | 66.82 | 7.82 | 100.26 | 8.85 | 132.54 | -68.63 | 77.90 | 0.9426 | 631.9 | -18.5 | |
| 2.58 | -6.00 | 3.85 | -6.00 | 8.33 | 132.07 | -69.10 | 78.53 | 0.9446 | 359.7 | 999999 | |
| 1.20 | -6.00 | 1.81 | -6.00 | 8.65 | 131.94 | -69.23 | 78.23 | 0.9457 | 66.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
