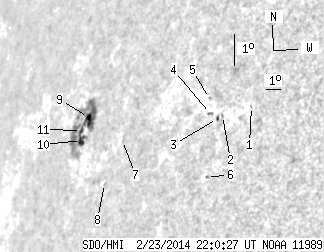

SDO HMI 2014-02-23 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.52 | 77.85 | 11.55 | 104.93 | 8.46 | 132.82 | -66.70 | 77.90 | 0.9299 | 241.2 | 64.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-23 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.89 | 8.08 | 143.08 | -56.44 | 75.89 | 0.8528 | -355.0 | -412.2 | |
| 0.00 | 0.95 | 0.00 | 0.93 | 7.98 | 141.48 | -58.03 | 76.43 | 0.8663 | -449.0 | -403.4 | |
| 0.52 | 1.46 | 0.51 | 1.45 | 7.92 | 141.21 | -58.30 | 76.57 | 0.8685 | -231.8 | -335.1 | |
| 0.00 | 1.81 | 0.00 | 1.82 | 8.12 | 140.76 | -58.75 | 76.46 | 0.8726 | -611.0 | -391.3 | |
| 0.00 | 1.12 | 0.00 | 1.13 | 8.59 | 140.59 | -58.93 | 75.97 | 0.8750 | -246.0 | -297.8 | |
| 0.00 | 1.12 | 0.00 | 1.11 | 6.15 | 140.93 | -58.58 | 78.63 | 0.8675 | 501.0 | 407.2 | |
| 0.00 | 0.95 | 0.00 | 1.15 | 7.91 | 135.23 | -64.29 | 77.98 | 0.9141 | 220.0 | 214.7 | |
| 0.00 | 0.60 | 0.00 | 0.75 | 6.72 | 134.28 | -65.24 | 79.47 | 0.9190 | -122.0 | -123.7 | |
| 2.24 | 68.89 | 3.06 | 95.70 | 8.95 | 132.38 | -67.14 | 77.49 | 0.9339 | 734.9 | 88.5 | |
| 4.30 | -9.00 | 5.94 | -9.00 | 8.28 | 132.07 | -67.45 | 78.25 | 0.9350 | 481.9 | 999999 | |
| 1.46 | -9.00 | 2.04 | -9.00 | 8.60 | 131.96 | -67.56 | 77.94 | 0.9361 | 266.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
