SDO HMI 2014-02-23 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.64 | 454.51 | 83.35 | 357.67 | -1.42 | 148.24 | -50.72 | 86.05 | 0.7764 | -201.7 | -156.1 | |
|
previous
or next observation for the same group /

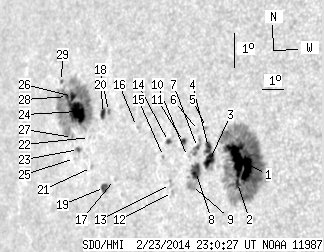

back to the solar disc SDO HMI 2014-02-23 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.86 | 237.06 | 30.02 | 173.93 | -2.27 | 151.43 | -47.53 | 86.54 | 0.7408 | -1062.7 | -428.5 | |
| 2.32 | -1.00 | 1.71 | -1.00 | -2.88 | 151.27 | -47.70 | 87.39 | 0.7418 | -586.3 | 999999 | |
| 8.69 | 20.73 | 6.56 | 15.66 | -2.11 | 150.05 | -48.91 | 86.58 | 0.7569 | -771.5 | -414.5 | |
| 4.30 | -3.00 | 3.25 | -3.00 | -1.72 | 150.02 | -48.94 | 86.07 | 0.7578 | -592.1 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.98 | -1.11 | 149.95 | -49.02 | 85.29 | 0.7596 | -415.0 | -336.0 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -1.17 | 149.58 | -49.38 | 85.43 | 0.7637 | -166.0 | -130.7 | |
| 0.60 | 8.95 | 0.46 | 6.84 | -1.67 | 149.52 | -49.44 | 86.10 | 0.7635 | -385.4 | -359.1 | |
| 8.86 | 12.73 | 6.77 | 9.73 | -2.37 | 149.40 | -49.57 | 87.04 | 0.7639 | -668.9 | -427.2 | |
| 0.00 | 6.88 | 0.00 | 5.27 | -2.77 | 149.19 | -49.77 | 87.59 | 0.7656 | -24.0 | -60.8 | |
| 0.00 | 0.34 | 0.00 | 0.27 | -1.89 | 149.05 | -49.91 | 86.47 | 0.7684 | -263.0 | -269.0 | |
| 1.81 | 3.27 | 1.40 | 2.53 | -1.43 | 148.88 | -50.08 | 85.90 | 0.7710 | -439.5 | -247.2 | |
| 0.00 | 1.55 | 0.00 | 1.21 | -2.89 | 148.30 | -50.67 | 87.89 | 0.7753 | -414.0 | -329.4 | |
| 0.00 | 2.67 | 0.00 | 2.09 | -2.65 | 148.22 | -50.75 | 87.58 | 0.7765 | -539.0 | -336.9 | |
| 1.38 | 3.01 | 1.08 | 2.37 | -1.36 | 148.18 | -50.78 | 85.94 | 0.7788 | -612.2 | -375.9 | |
| 0.00 | 1.20 | 0.00 | 0.95 | -1.78 | 147.93 | -51.04 | 86.53 | 0.7809 | -157.0 | -259.7 | |
| 0.00 | 0.60 | 0.00 | 0.49 | -0.76 | 146.66 | -52.31 | 85.47 | 0.7960 | 498.0 | 445.4 | |
| 0.00 | 0.60 | 0.00 | 0.50 | -2.23 | 145.52 | -53.45 | 87.48 | 0.8057 | 554.0 | 486.6 | |
| 0.52 | 1.72 | 0.43 | 1.45 | -0.17 | 145.28 | -53.69 | 85.00 | 0.8111 | 607.2 | 550.6 | |
| 3.70 | 5.16 | 3.11 | 4.34 | -2.42 | 145.00 | -53.96 | 87.79 | 0.8107 | 653.0 | 457.7 | |
| 3.01 | 5.08 | 2.55 | 4.30 | -0.21 | 145.02 | -53.94 | 85.09 | 0.8136 | 572.1 | 514.2 | |
| 0.00 | 1.20 | 0.00 | 1.03 | -1.76 | 144.37 | -54.59 | 87.08 | 0.8180 | 224.0 | 325.0 | |
| 0.00 | 0.69 | 0.00 | 0.59 | -0.85 | 144.30 | -54.67 | 86.00 | 0.8199 | 458.0 | 504.1 | |
| 1.12 | 2.41 | 0.98 | 2.10 | -1.15 | 143.72 | -55.25 | 86.46 | 0.8252 | 697.8 | 613.2 | |
| 23.05 | 133.84 | 20.22 | 117.94 | -0.01 | 143.68 | -55.28 | 85.09 | 0.8272 | 887.0 | 239.0 | |
| 0.00 | 0.86 | 0.00 | 0.75 | -1.40 | 143.50 | -55.46 | 86.79 | 0.8270 | 316.0 | 307.4 | |
| 3.27 | -24.00 | 2.89 | -24.00 | 0.47 | 143.42 | -55.55 | 84.57 | 0.8304 | 638.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.91 | -0.76 | 143.41 | -55.55 | 86.04 | 0.8287 | 446.0 | 417.5 | |
| 1.63 | -24.00 | 1.46 | -24.00 | 0.50 | 143.15 | -55.81 | 84.59 | 0.8330 | 385.6 | 999999 | |
| 0.52 | 1.38 | 0.46 | 1.24 | 0.98 | 142.82 | -56.14 | 84.08 | 0.8369 | 217.8 | 257.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
