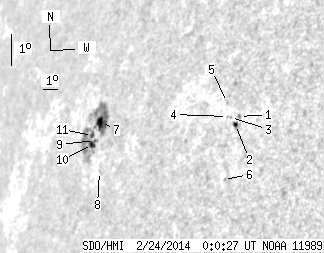

SDO HMI 2014-02-24 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.70 | 72.45 | 14.85 | 93.23 | 8.56 | 132.88 | -65.54 | 77.55 | 0.9227 | 345.9 | 87.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-24 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 1.64 | 8.04 | 141.47 | -56.95 | 76.07 | 0.8571 | -434.0 | -410.2 | |
| 1.46 | 2.93 | 1.40 | 2.80 | 7.82 | 141.30 | -57.12 | 76.37 | 0.8582 | -289.2 | -195.6 | |
| 0.00 | 0.86 | 0.00 | 0.83 | 8.06 | 140.96 | -57.45 | 76.18 | 0.8616 | -325.0 | -284.3 | |
| 0.00 | 0.43 | 0.00 | 0.42 | 8.11 | 140.78 | -57.63 | 76.17 | 0.8632 | -497.0 | -471.8 | |
| 0.00 | 0.52 | 0.00 | 0.51 | 8.55 | 140.68 | -57.73 | 75.70 | 0.8650 | -147.0 | -167.3 | |
| 0.00 | 0.52 | 0.00 | 0.49 | 6.18 | 140.94 | -57.47 | 78.32 | 0.8580 | 579.0 | 537.3 | |
| 5.42 | 64.87 | 7.08 | 85.78 | 8.87 | 132.42 | -66.00 | 77.33 | 0.9268 | 739.3 | 107.6 | |
| 0.00 | 0.60 | 0.00 | 0.76 | 7.33 | 132.84 | -65.58 | 78.88 | 0.9221 | 338.0 | 342.4 | |
| 0.52 | -7.00 | 0.68 | -7.00 | 8.36 | 132.15 | -66.27 | 77.93 | 0.9278 | 630.2 | 999999 | |
| 2.84 | -7.00 | 3.75 | -7.00 | 8.25 | 132.03 | -66.38 | 78.07 | 0.9284 | 499.9 | 999999 | |
| 1.46 | -7.00 | 1.94 | -7.00 | 8.53 | 131.93 | -66.48 | 77.79 | 0.9294 | 291.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
