SDO HMI 2014-02-24 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.90 | 0.00 | 178.29 | -13.73 | 109.35 | -89.07 | 103.52 | 0.9992 | -81.8 | -113.2 | |
|
previous
or next observation for the same group /

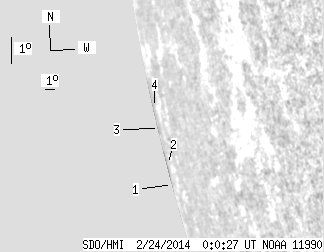

back to the solar disc SDO HMI 2014-02-24 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 11.84 | -15.11 | 108.61 | -89.80 | 104.97 | 0.9995 | -51.0 | -71.0 | |
| 0.00 | 4.04 | 0.00 | 63.64 | -14.52 | 108.92 | -89.49 | 104.36 | 0.9994 | -93.0 | -65.8 | |
| 0.00 | 3.01 | 0.00 | 35.14 | -13.51 | 109.71 | -88.71 | 103.26 | 0.9989 | -118.0 | -141.8 | |
| 0.00 | 5.25 | 0.00 | 67.67 | -12.86 | 109.69 | -88.73 | 102.61 | 0.9990 | -65.0 | -150.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
