SDO HMI 2014-02-24 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.84 | 71.94 | 13.57 | 91.09 | 8.57 | 132.69 | -65.18 | 77.46 | 0.9205 | 365.2 | 106.8 | |
|
previous
or next observation for the same group /

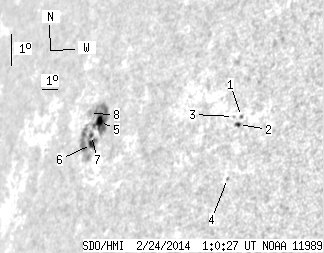

back to the solar disc SDO HMI 2014-02-24 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 1.29 | 8.01 | 141.47 | -56.40 | 75.95 | 0.8523 | -449.0 | -448.1 | |
| 1.03 | 2.50 | 0.97 | 2.35 | 7.78 | 141.36 | -56.51 | 76.24 | 0.8528 | -434.5 | -362.9 | |
| 0.00 | 0.77 | 0.00 | 0.74 | 8.06 | 141.02 | -56.85 | 76.01 | 0.8563 | -414.0 | -392.9 | |
| 0.00 | 0.86 | 0.00 | 0.81 | 6.17 | 141.05 | -56.81 | 78.17 | 0.8522 | 356.0 | 359.8 | |
| 5.25 | 64.19 | 6.70 | 82.93 | 8.88 | 132.38 | -65.49 | 77.21 | 0.9235 | 740.3 | 144.0 | |
| 3.18 | -5.00 | 4.11 | -5.00 | 8.22 | 132.01 | -65.86 | 77.99 | 0.9250 | 524.3 | 999999 | |
| 1.38 | -5.00 | 1.79 | -5.00 | 8.50 | 131.91 | -65.95 | 77.71 | 0.9260 | 296.7 | 999999 | |
| 0.00 | 2.24 | 0.00 | 2.97 | 9.22 | 131.51 | -66.36 | 77.03 | 0.9295 | -300.0 | -258.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
