SDO HMI 2014-02-24 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.25 | 0.00 | 212.87 | -13.98 | 108.91 | -88.41 | 103.70 | 0.9983 | -80.8 | -223.7 | |
|
previous
or next observation for the same group /

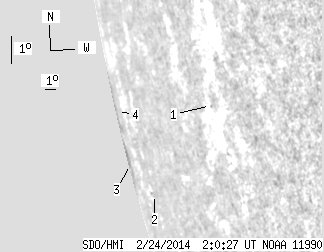

back to the solar disc SDO HMI 2014-02-24 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.68 | -14.69 | 124.36 | -72.96 | 103.17 | 0.9512 | 159.0 | 135.0 | |
| 0.00 | 4.04 | 0.00 | 14.35 | -16.14 | 113.62 | -83.70 | 105.39 | 0.9909 | 22.0 | 19.9 | |
| 0.00 | 9.29 | 0.00 | 105.69 | -14.58 | 108.48 | -88.84 | 104.34 | 0.9989 | -192.0 | -219.6 | |
| 0.00 | 7.49 | 0.00 | 92.15 | -12.95 | 108.55 | -88.77 | 102.71 | 0.9990 | -312.0 | -268.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
