SDO HMI 2014-02-24 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.02 | 82.04 | 13.28 | 99.90 | 8.47 | 132.62 | -64.15 | 77.34 | 0.9135 | 288.5 | 90.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-24 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

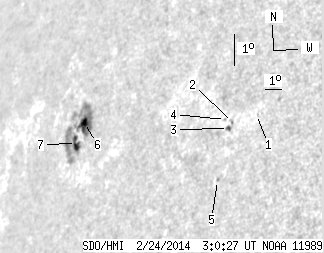

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.46 | 8.00 | 142.79 | -53.99 | 75.27 | 0.8304 | -290.0 | -370.8 | |
| 0.00 | 0.52 | 0.00 | 0.47 | 7.89 | 141.56 | -55.21 | 75.76 | 0.8414 | -477.0 | -448.3 | |
| 0.95 | 2.50 | 0.87 | 2.28 | 7.72 | 141.38 | -55.39 | 76.00 | 0.8427 | -546.5 | -368.2 | |
| 0.00 | 0.95 | 0.00 | 0.87 | 8.02 | 141.16 | -55.61 | 75.72 | 0.8453 | -381.0 | -368.9 | |
| 0.00 | 1.03 | 0.00 | 0.94 | 6.17 | 141.07 | -55.70 | 77.88 | 0.8422 | 533.0 | 429.5 | |
| 3.70 | 76.52 | 4.53 | 94.88 | 8.90 | 132.39 | -64.38 | 76.94 | 0.9162 | 681.5 | 104.8 | |
| 6.37 | -6.00 | 7.88 | -6.00 | 8.30 | 132.01 | -64.76 | 77.66 | 0.9179 | 379.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
