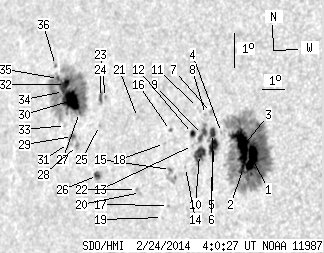

SDO HMI 2014-02-24 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.48 | 496.37 | 82.98 | 368.80 | -1.42 | 148.34 | -47.88 | 85.52 | 0.7446 | -215.3 | -137.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-24 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.53 | 255.67 | 11.47 | 178.17 | -2.53 | 151.82 | -44.40 | 86.32 | 0.7028 | -1351.7 | -407.0 | |
| 1.12 | -1.00 | 0.78 | -1.00 | -2.76 | 151.43 | -44.79 | 86.72 | 0.7072 | -714.1 | 999999 | |
| 27.03 | -1.00 | 18.91 | -1.00 | -2.13 | 151.42 | -44.81 | 85.84 | 0.7084 | -888.2 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.67 | -1.64 | 150.55 | -45.68 | 85.33 | 0.7199 | -405.0 | -383.1 | |
| 8.61 | 20.57 | 6.16 | 14.72 | -2.02 | 150.19 | -46.03 | 85.93 | 0.7235 | -844.8 | -498.6 | |
| 3.87 | -5.00 | 2.77 | -5.00 | -1.63 | 150.16 | -46.06 | 85.40 | 0.7245 | -645.6 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.48 | -1.00 | 150.13 | -46.09 | 84.54 | 0.7260 | -546.0 | -373.9 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -1.04 | 149.87 | -46.35 | 84.65 | 0.7290 | -393.0 | -328.9 | |
| 4.39 | 10.42 | 3.17 | 7.52 | -1.62 | 149.73 | -46.49 | 85.47 | 0.7296 | -483.5 | -206.1 | |
| 8.95 | 15.15 | 6.47 | 10.94 | -2.21 | 149.58 | -46.65 | 86.29 | 0.7305 | -681.6 | -450.6 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -0.80 | 149.53 | -46.69 | 84.39 | 0.7335 | -314.0 | -284.0 | |
| 2.58 | 3.53 | 1.88 | 2.57 | -1.55 | 149.30 | -46.93 | 85.46 | 0.7349 | -296.4 | -121.4 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -1.91 | 149.28 | -46.94 | 85.95 | 0.7344 | -357.0 | -289.1 | |
| 0.00 | 0.95 | 0.00 | 0.69 | -2.54 | 148.95 | -47.27 | 86.85 | 0.7373 | -254.0 | -228.8 | |
| 0.34 | 10.07 | 0.25 | 7.44 | -2.53 | 148.29 | -47.94 | 86.97 | 0.7451 | -534.2 | -297.1 | |
| 0.00 | 1.29 | 0.00 | 0.96 | -1.37 | 148.33 | -47.89 | 85.41 | 0.7464 | -549.0 | -484.9 | |
| 0.00 | 1.29 | 0.00 | 0.96 | -3.59 | 148.13 | -48.09 | 88.41 | 0.7454 | -613.0 | -511.1 | |
| 0.00 | 0.95 | 0.00 | 0.71 | -1.74 | 148.05 | -48.17 | 85.95 | 0.7490 | -494.0 | -373.1 | |
| 0.00 | 1.21 | 0.00 | 0.90 | -3.92 | 147.84 | -48.39 | 88.89 | 0.7484 | -221.0 | -162.9 | |
| 0.00 | 0.34 | 0.00 | 0.26 | -3.09 | 146.90 | -49.33 | 87.93 | 0.7601 | 163.0 | 157.0 | |
| 0.00 | 1.64 | 0.00 | 1.25 | -0.85 | 146.86 | -49.37 | 85.01 | 0.7641 | 338.0 | 326.5 | |
| 0.00 | 1.03 | 0.00 | 0.79 | -2.98 | 146.72 | -49.50 | 87.82 | 0.7623 | 744.0 | 635.8 | |
| 0.00 | 1.12 | 0.00 | 0.88 | -0.10 | 145.37 | -50.85 | 84.35 | 0.7816 | 661.0 | 598.8 | |
| 2.07 | 4.13 | 1.64 | 3.28 | -0.08 | 145.14 | -51.09 | 84.37 | 0.7842 | 591.0 | 344.4 | |
| 0.00 | 1.29 | 0.00 | 1.02 | -0.91 | 145.08 | -51.14 | 85.43 | 0.7834 | 541.0 | 465.5 | |
| 3.01 | 4.56 | 2.39 | 3.62 | -2.39 | 144.93 | -51.30 | 87.34 | 0.7828 | 772.5 | 556.7 | |
| 1.38 | 144.45 | 1.12 | 118.97 | -0.43 | 144.13 | -52.10 | 85.01 | 0.7943 | 933.0 | 261.1 | |
| 0.00 | 3.10 | 0.00 | 2.51 | -1.40 | 144.01 | -52.22 | 86.25 | 0.7941 | 651.0 | 607.0 | |
| 1.29 | 3.87 | 1.05 | 3.16 | -1.11 | 143.77 | -52.45 | 85.92 | 0.7970 | 768.3 | 576.1 | |
| 22.21 | -27.00 | 18.21 | -27.00 | -0.03 | 143.74 | -52.49 | 84.59 | 0.7990 | 895.5 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.41 | -1.30 | 143.57 | -52.66 | 86.19 | 0.7988 | 329.0 | 298.8 | |
| 6.20 | -27.00 | 5.13 | -27.00 | 0.48 | 143.44 | -52.78 | 84.02 | 0.8030 | 601.2 | 999999 | |
| 0.00 | 1.55 | 0.00 | 1.28 | -0.75 | 143.44 | -52.79 | 85.53 | 0.8010 | 428.0 | 351.8 | |
| 0.69 | -27.00 | 0.57 | -27.00 | 0.28 | 143.34 | -52.88 | 84.28 | 0.8036 | 433.2 | 999999 | |
| 1.21 | -27.00 | 1.01 | -27.00 | 0.69 | 143.09 | -53.13 | 83.82 | 0.8069 | 437.0 | 999999 | |
| 0.00 | 1.38 | 0.00 | 1.15 | 1.10 | 142.93 | -53.29 | 83.36 | 0.8092 | 385.0 | 255.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
