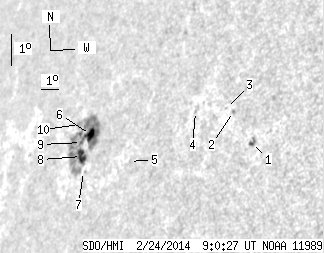

SDO HMI 2014-02-24 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.32 | 98.93 | 16.65 | 107.36 | 8.50 | 132.62 | -60.88 | 76.55 | 0.8897 | 367.4 | 47.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-24 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 3.87 | 0.51 | 3.26 | 7.60 | 141.48 | -52.01 | 75.16 | 0.8104 | -606.9 | -475.5 | |
| 0.00 | 1.38 | 0.00 | 1.20 | 8.69 | 140.38 | -53.11 | 74.21 | 0.8238 | -637.0 | -563.9 | |
| 0.00 | 0.95 | 0.00 | 0.83 | 8.82 | 140.00 | -53.49 | 74.17 | 0.8278 | -306.0 | -308.2 | |
| 0.00 | 1.12 | 0.00 | 1.02 | 8.90 | 138.38 | -55.12 | 74.57 | 0.8429 | -345.0 | -248.5 | |
| 0.00 | 0.60 | 0.00 | 0.60 | 7.73 | 134.99 | -58.50 | 76.82 | 0.8698 | 260.0 | 297.3 | |
| 6.03 | 87.14 | 6.57 | 96.11 | 8.85 | 132.37 | -61.13 | 76.24 | 0.8927 | 757.8 | 93.8 | |
| 0.00 | 0.34 | 0.00 | 0.37 | 7.73 | 132.22 | -61.27 | 77.50 | 0.8919 | 338.0 | 402.5 | |
| 8.09 | -6.00 | 8.90 | -6.00 | 8.22 | 131.97 | -61.52 | 77.03 | 0.8947 | 499.6 | 999999 | |
| 0.60 | -6.00 | 0.67 | -6.00 | 8.66 | 131.85 | -61.65 | 76.57 | 0.8963 | 300.7 | 999999 | |
| 0.00 | 3.53 | 0.00 | 3.97 | 9.25 | 131.55 | -61.95 | 76.01 | 0.8995 | -305.0 | -258.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
