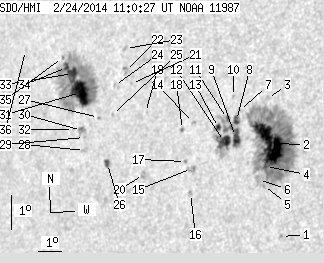

SDO HMI 2014-02-24 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.86 | 514.01 | 81.51 | 356.01 | -1.38 | 148.43 | -43.97 | 84.68 | 0.6980 | -183.3 | -119.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-24 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.61 | -5.06 | 152.01 | -40.39 | 89.41 | 0.6478 | -664.0 | -637.2 | |
| 52.52 | 249.33 | 34.37 | 162.98 | -2.27 | 151.73 | -40.67 | 85.19 | 0.6558 | -1019.9 | -411.5 | |
| 0.00 | 1.72 | 0.00 | 1.13 | -0.92 | 151.65 | -40.75 | 83.17 | 0.6597 | 176.0 | 160.8 | |
| 0.95 | -2.00 | 0.62 | -2.00 | -2.93 | 151.51 | -40.89 | 86.25 | 0.6575 | -591.0 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.79 | -3.49 | 151.40 | -41.00 | 87.11 | 0.6580 | -277.0 | -246.9 | |
| 0.00 | 5.85 | 0.00 | 3.85 | -3.30 | 151.22 | -41.18 | 86.85 | 0.6607 | 50.0 | -34.6 | |
| 0.00 | 1.29 | 0.00 | 0.86 | -1.18 | 150.54 | -41.86 | 83.85 | 0.6734 | -271.0 | -164.7 | |
| 2.84 | 34.18 | 1.90 | 22.94 | -1.47 | 150.41 | -41.99 | 84.30 | 0.6745 | -716.7 | -362.5 | |
| 9.73 | -8.00 | 6.51 | -8.00 | -1.94 | 150.36 | -42.04 | 85.01 | 0.6742 | -878.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -0.74 | 150.30 | -42.10 | 83.26 | 0.6773 | -402.0 | -357.0 | |
| 1.21 | -8.00 | 0.81 | -8.00 | -1.38 | 150.05 | -42.35 | 84.25 | 0.6792 | -400.8 | 999999 | |
| 9.21 | 24.71 | 6.20 | 16.66 | -2.05 | 149.91 | -42.49 | 85.27 | 0.6797 | -702.1 | -343.1 | |
| 2.15 | -8.00 | 1.46 | -8.00 | -1.62 | 149.68 | -42.72 | 84.68 | 0.6834 | -369.8 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.95 | -1.38 | 148.66 | -43.74 | 84.57 | 0.6966 | -692.0 | -536.8 | |
| 0.00 | 5.25 | 0.00 | 3.61 | -2.74 | 148.53 | -43.87 | 86.54 | 0.6958 | -559.0 | -468.6 | |
| 0.00 | 2.41 | 0.00 | 1.66 | -3.48 | 148.45 | -43.95 | 87.61 | 0.6957 | -629.0 | -485.3 | |
| 0.00 | 1.21 | 0.00 | 0.83 | -2.51 | 148.29 | -44.11 | 86.25 | 0.6992 | -438.0 | -332.6 | |
| 0.00 | 1.46 | 0.00 | 1.01 | -1.55 | 148.20 | -44.20 | 84.91 | 0.7020 | -495.0 | -410.8 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -0.90 | 146.66 | -45.74 | 84.34 | 0.7220 | 457.0 | 496.2 | |
| 0.00 | 3.19 | 0.00 | 2.27 | -2.74 | 146.51 | -45.89 | 86.90 | 0.7206 | 740.0 | 627.8 | |
| 0.00 | 0.69 | 0.00 | 0.50 | 0.02 | 146.07 | -46.33 | 83.22 | 0.7308 | 762.0 | 702.1 | |
| 0.00 | 3.62 | 0.00 | 2.63 | 0.43 | 145.81 | -46.59 | 82.72 | 0.7347 | 621.0 | 609.8 | |
| 0.00 | 2.24 | 0.00 | 1.63 | 1.09 | 145.80 | -46.60 | 81.84 | 0.7363 | 608.0 | 504.1 | |
| 0.00 | 0.95 | 0.00 | 0.69 | 0.03 | 145.33 | -47.07 | 83.38 | 0.7395 | 484.0 | 468.1 | |
| 0.00 | 1.12 | 0.00 | 0.82 | -0.83 | 145.23 | -47.17 | 84.55 | 0.7389 | 624.0 | 491.2 | |
| 2.32 | 4.05 | 1.70 | 2.97 | -2.27 | 144.97 | -47.43 | 86.54 | 0.7396 | 790.8 | 612.1 | |
| 0.00 | 1.03 | 0.00 | 0.77 | -0.86 | 144.61 | -47.79 | 84.72 | 0.7461 | 704.0 | 619.5 | |
| 0.00 | 3.10 | 0.00 | 2.32 | -1.79 | 143.96 | -48.44 | 86.08 | 0.7520 | 590.0 | 474.4 | |
| 0.00 | 0.95 | 0.00 | 0.71 | -1.40 | 143.98 | -48.42 | 85.56 | 0.7524 | 615.0 | 551.9 | |
| 0.00 | 4.65 | 0.00 | 3.49 | -1.18 | 143.85 | -48.55 | 85.29 | 0.7543 | 763.0 | 622.0 | |
| 27.03 | 153.42 | 20.39 | 116.34 | -0.04 | 143.82 | -48.58 | 83.81 | 0.7567 | 887.4 | 247.8 | |
| 0.00 | 0.95 | 0.00 | 0.72 | -1.12 | 143.49 | -48.91 | 85.28 | 0.7585 | 381.0 | 325.7 | |
| 7.75 | -31.00 | 5.90 | -31.00 | 0.56 | 143.45 | -48.95 | 83.10 | 0.7619 | 671.0 | 999999 | |
| 2.15 | -31.00 | 1.65 | -31.00 | 0.77 | 143.18 | -49.22 | 82.90 | 0.7654 | 495.7 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.93 | 1.09 | 142.99 | -49.41 | 82.53 | 0.7681 | 370.0 | 301.9 | |
| 0.00 | 0.43 | 0.00 | 0.34 | 1.47 | 141.25 | -51.15 | 82.45 | 0.7876 | 465.0 | 424.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
