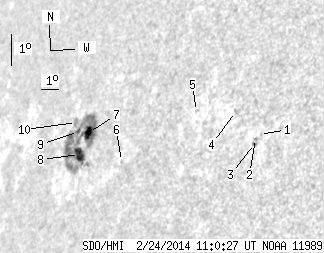

SDO HMI 2014-02-24 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.61 | 108.75 | 17.56 | 114.32 | 8.52 | 132.55 | -59.85 | 76.28 | 0.8818 | 345.7 | 64.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-24 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.42 | 7.81 | 141.71 | -50.69 | 74.50 | 0.7977 | -456.0 | -456.5 | |
| 0.00 | 1.46 | 0.00 | 1.20 | 7.70 | 141.54 | -50.86 | 74.68 | 0.7992 | -601.0 | -503.4 | |
| 0.00 | 1.38 | 0.00 | 1.13 | 7.55 | 141.52 | -50.88 | 74.87 | 0.7990 | -692.0 | -552.1 | |
| 0.00 | 2.07 | 0.00 | 1.75 | 8.64 | 140.40 | -52.00 | 73.92 | 0.8130 | -542.0 | -400.5 | |
| 0.00 | 0.95 | 0.00 | 0.84 | 8.85 | 138.40 | -54.00 | 74.30 | 0.8325 | -310.0 | -265.6 | |
| 0.00 | 0.86 | 0.00 | 0.84 | 7.72 | 134.60 | -57.80 | 76.66 | 0.8638 | 379.0 | 335.1 | |
| 6.80 | 97.98 | 7.15 | 104.31 | 8.85 | 132.40 | -60.00 | 75.97 | 0.8840 | 770.1 | 108.1 | |
| 8.78 | -7.00 | 9.30 | -7.00 | 8.22 | 132.01 | -60.39 | 76.76 | 0.8859 | 577.0 | 999999 | |
| 1.03 | -7.00 | 1.11 | -7.00 | 8.95 | 131.76 | -60.64 | 76.01 | 0.8892 | 91.2 | 999999 | |
| 0.00 | 3.53 | 0.00 | 3.83 | 9.25 | 131.55 | -60.85 | 75.74 | 0.8914 | -261.0 | -270.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
