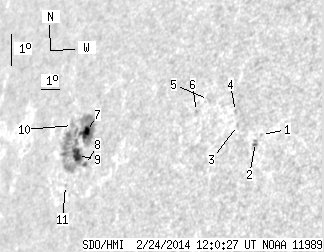

SDO HMI 2014-02-24 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.81 | 102.00 | 15.37 | 105.00 | 8.39 | 132.73 | -59.12 | 76.24 | 0.8756 | 283.9 | 64.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-24 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.49 | 7.81 | 141.79 | -50.06 | 74.29 | 0.7914 | -491.0 | -432.9 | |
| 0.00 | 2.75 | 0.00 | 2.23 | 7.59 | 141.54 | -50.31 | 74.64 | 0.7933 | -638.0 | -555.1 | |
| 0.00 | 1.46 | 0.00 | 1.22 | 8.20 | 140.58 | -51.27 | 74.21 | 0.8047 | -556.0 | -502.6 | |
| 0.00 | 1.46 | 0.00 | 1.22 | 8.65 | 140.40 | -51.45 | 73.73 | 0.8077 | -571.0 | -464.6 | |
| 0.00 | 1.72 | 0.00 | 1.49 | 9.16 | 138.96 | -52.89 | 73.59 | 0.8229 | -470.0 | -336.8 | |
| 0.00 | 0.69 | 0.00 | 0.60 | 8.85 | 138.42 | -53.43 | 74.12 | 0.8272 | -281.0 | -252.1 | |
| 4.56 | 90.65 | 4.72 | 94.92 | 8.88 | 132.39 | -59.46 | 75.79 | 0.8798 | 715.8 | 118.6 | |
| 0.95 | -7.00 | 0.97 | -7.00 | 7.85 | 132.59 | -59.26 | 76.89 | 0.8763 | 652.7 | 999999 | |
| 9.30 | -7.00 | 9.68 | -7.00 | 8.19 | 132.03 | -59.82 | 76.65 | 0.8814 | 576.5 | 999999 | |
| 0.00 | 2.07 | 0.00 | 2.20 | 9.17 | 131.47 | -60.39 | 75.71 | 0.8876 | -325.0 | -284.5 | |
| 0.00 | 0.60 | 0.00 | 0.63 | 7.33 | 131.51 | -60.34 | 77.73 | 0.8840 | 375.0 | 353.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
