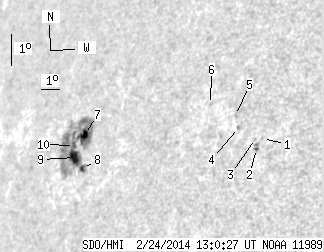

SDO HMI 2014-02-24 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.73 | 123.70 | 18.01 | 125.47 | 8.34 | 132.60 | -58.71 | 76.18 | 0.8721 | 305.4 | 88.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-24 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.48 | 7.78 | 141.81 | -49.50 | 74.13 | 0.7855 | -463.0 | -456.3 | |
| 0.52 | 3.62 | 0.41 | 2.89 | 7.50 | 141.57 | -49.73 | 74.56 | 0.7871 | -578.3 | -484.9 | |
| 0.00 | 0.86 | 0.00 | 0.69 | 7.81 | 141.48 | -49.83 | 74.21 | 0.7890 | -365.0 | -292.8 | |
| 0.00 | 1.38 | 0.00 | 1.13 | 8.23 | 140.60 | -50.70 | 73.98 | 0.7991 | -503.0 | -456.8 | |
| 0.00 | 1.03 | 0.00 | 0.85 | 8.62 | 140.39 | -50.92 | 73.58 | 0.8023 | -633.0 | -551.4 | |
| 0.00 | 1.21 | 0.00 | 1.03 | 9.09 | 139.08 | -52.22 | 73.46 | 0.8164 | -284.0 | -265.9 | |
| 3.70 | 115.00 | 3.76 | 118.40 | 8.88 | 132.38 | -58.92 | 75.65 | 0.8754 | 769.8 | 122.6 | |
| 1.89 | -7.00 | 1.90 | -7.00 | 7.83 | 132.52 | -58.78 | 76.79 | 0.8723 | 631.2 | 999999 | |
| 9.73 | -7.00 | 9.98 | -7.00 | 8.22 | 131.96 | -59.35 | 76.49 | 0.8776 | 564.5 | 999999 | |
| 1.89 | -7.00 | 1.96 | -7.00 | 8.60 | 131.86 | -59.44 | 76.10 | 0.8791 | 341.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
