SDO HMI 2014-02-24 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.24 | 120.90 | 21.00 | 119.26 | 8.46 | 132.40 | -57.80 | 75.81 | 0.8650 | 355.8 | 106.9 | |
|
previous
or next observation for the same group /

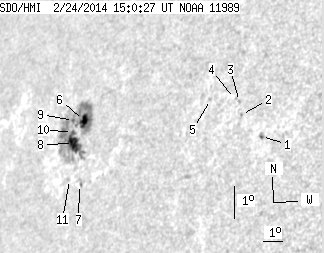

back to the solar disc SDO HMI 2014-02-24 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.34 | 2.58 | 0.27 | 2.02 | 7.44 | 141.60 | -48.60 | 74.24 | 0.7752 | -625.2 | -563.9 | |
| 0.00 | 0.86 | 0.00 | 0.69 | 8.22 | 140.56 | -49.65 | 73.65 | 0.7883 | -659.0 | -579.6 | |
| 0.00 | 1.03 | 0.00 | 0.83 | 8.63 | 140.39 | -49.81 | 73.20 | 0.7912 | -607.0 | -546.8 | |
| 0.00 | 0.34 | 0.00 | 0.28 | 8.75 | 140.14 | -50.07 | 73.14 | 0.7942 | -378.0 | -409.2 | |
| 0.00 | 1.12 | 0.00 | 0.93 | 8.83 | 138.98 | -51.23 | 73.44 | 0.8060 | -497.0 | -461.2 | |
| 7.31 | 113.85 | 7.21 | 113.42 | 8.88 | 132.34 | -57.86 | 75.37 | 0.8667 | 764.8 | 138.8 | |
| 0.00 | 0.52 | 0.00 | 0.50 | 6.91 | 132.55 | -57.65 | 77.55 | 0.8610 | -202.0 | -209.2 | |
| 12.05 | -6.00 | 11.97 | -6.00 | 8.22 | 131.93 | -58.27 | 76.22 | 0.8688 | 570.3 | 999999 | |
| 0.77 | -6.00 | 0.78 | -6.00 | 8.95 | 131.75 | -58.45 | 75.45 | 0.8717 | 190.4 | 999999 | |
| 0.77 | -6.00 | 0.77 | -6.00 | 8.58 | 131.79 | -58.42 | 75.86 | 0.8707 | 449.0 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.59 | 7.12 | 131.94 | -58.26 | 77.45 | 0.8666 | 264.0 | 216.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
