SDO HMI 2014-02-24 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.13 | 12.48 | 5.39 | 16.42 | 4.30 | 123.13 | -67.07 | 82.39 | 0.9280 | -244.9 | -3.1 | |
|
previous
or next observation for the same group /

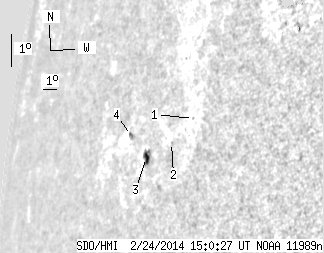

back to the solar disc SDO HMI 2014-02-24 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.80 | 4.85 | 126.53 | -63.67 | 81.17 | 0.9056 | -360.0 | -367.0 | |
| 0.00 | 0.34 | 0.00 | 0.42 | 4.29 | 125.10 | -65.11 | 82.06 | 0.9151 | -257.0 | -249.0 | |
| 4.13 | 8.35 | 5.39 | 10.88 | 4.04 | 123.28 | -66.92 | 82.64 | 0.9269 | -364.3 | -261.8 | |
| 0.00 | 3.10 | 0.00 | 4.32 | 4.86 | 121.94 | -68.26 | 82.01 | 0.9362 | 526.0 | 416.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
