SDO HMI 2014-02-24 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.59 | 143.87 | 89.60 | 505.51 | -13.18 | 107.32 | -82.89 | 102.34 | 0.9894 | -362.9 | -328.9 | |
|
previous
or next observation for the same group /

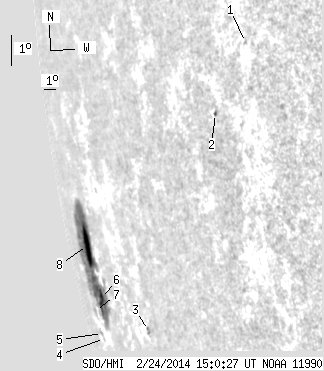

back to the solar disc SDO HMI 2014-02-24 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.66 | -8.81 | 126.63 | -63.57 | 96.28 | 0.8922 | 433.0 | 341.3 | |
| 0.43 | 1.12 | 0.52 | 1.34 | -10.63 | 123.79 | -66.41 | 98.48 | 0.9124 | 140.0 | 51.9 | |
| 0.00 | 2.75 | 0.00 | 5.48 | -16.03 | 113.25 | -76.96 | 104.78 | 0.9695 | 303.0 | 171.3 | |
| 0.00 | 0.69 | 0.00 | 2.72 | -15.36 | 105.75 | -84.45 | 104.67 | 0.9927 | 246.0 | 274.0 | |
| 0.00 | 1.03 | 0.00 | 4.22 | -15.19 | 105.59 | -84.61 | 104.51 | 0.9930 | 279.0 | 253.6 | |
| 7.06 | 135.36 | 23.33 | 481.18 | -14.33 | 107.44 | -82.77 | 103.49 | 0.9891 | -408.9 | -346.2 | |
| 0.00 | 2.32 | 0.00 | 9.91 | -14.45 | 105.36 | -84.84 | 103.79 | 0.9936 | -444.0 | -409.1 | |
| 19.10 | -6.00 | 65.75 | -6.00 | -12.67 | 107.17 | -83.03 | 101.84 | 0.9901 | -390.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
