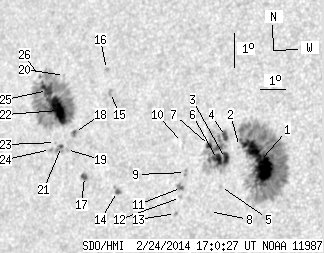

SDO HMI 2014-02-24 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.68 | 527.84 | 70.06 | 346.62 | -1.32 | 148.50 | -40.60 | 83.79 | 0.6554 | -218.3 | -152.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-24 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.27 | 254.25 | 30.12 | 158.31 | -2.22 | 151.83 | -37.27 | 84.30 | 0.6104 | -1082.3 | -497.3 | |
| 0.00 | 1.12 | 0.00 | 0.71 | -1.71 | 151.09 | -38.01 | 83.68 | 0.6216 | -269.0 | -303.2 | |
| 5.76 | 72.19 | 3.66 | 46.09 | -2.03 | 150.55 | -38.55 | 84.32 | 0.6282 | -966.8 | -334.1 | |
| 3.18 | -3.00 | 2.02 | -3.00 | -1.37 | 150.57 | -38.53 | 83.28 | 0.6294 | -753.0 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.77 | -2.85 | 150.33 | -38.77 | 85.66 | 0.6295 | -447.0 | -333.1 | |
| 8.09 | -3.00 | 5.16 | -3.00 | -2.03 | 150.25 | -38.85 | 84.40 | 0.6322 | -757.4 | 999999 | |
| 2.50 | -3.00 | 1.60 | -3.00 | -1.59 | 149.95 | -39.15 | 83.79 | 0.6371 | -455.1 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -3.55 | 149.88 | -39.22 | 86.87 | 0.6344 | -410.0 | -407.3 | |
| 0.00 | 2.67 | 0.00 | 1.73 | -2.32 | 149.00 | -40.10 | 85.14 | 0.6482 | -644.0 | -526.6 | |
| 0.00 | 0.34 | 0.00 | 0.22 | -1.42 | 148.91 | -40.19 | 83.78 | 0.6512 | -565.0 | -568.0 | |
| 0.60 | 3.61 | 0.39 | 2.35 | -2.75 | 148.83 | -40.27 | 85.84 | 0.6497 | -713.3 | -511.7 | |
| 0.00 | 1.46 | 0.00 | 0.95 | -3.05 | 148.78 | -40.32 | 86.30 | 0.6498 | -547.0 | -430.2 | |
| 0.00 | 1.63 | 0.00 | 1.06 | -3.51 | 148.56 | -40.54 | 87.05 | 0.6520 | -621.0 | -495.2 | |
| 1.29 | 4.13 | 0.87 | 2.79 | -2.66 | 146.29 | -42.82 | 86.21 | 0.6827 | 760.3 | 593.6 | |
| 0.00 | 2.58 | 0.00 | 1.76 | 0.32 | 146.06 | -43.04 | 81.98 | 0.6916 | 688.0 | 606.0 | |
| 0.00 | 1.55 | 0.00 | 1.06 | 1.02 | 145.89 | -43.21 | 81.02 | 0.6954 | 737.0 | 599.7 | |
| 2.24 | 3.70 | 1.55 | 2.56 | -2.10 | 144.95 | -44.15 | 85.67 | 0.7004 | 835.8 | 596.1 | |
| 0.77 | 3.18 | 0.54 | 2.23 | -0.75 | 144.57 | -44.53 | 83.85 | 0.7076 | 835.4 | 726.4 | |
| 0.00 | 1.46 | 0.00 | 1.03 | -1.23 | 144.23 | -44.87 | 84.60 | 0.7109 | 753.0 | 548.9 | |
| 0.00 | 0.95 | 0.00 | 0.67 | 0.99 | 144.15 | -44.95 | 81.54 | 0.7165 | 251.0 | 281.4 | |
| 0.95 | 5.59 | 0.67 | 3.95 | -1.12 | 144.02 | -45.08 | 84.49 | 0.7136 | 724.2 | 640.6 | |
| 24.26 | 163.82 | 17.19 | 116.68 | -0.03 | 143.91 | -45.20 | 83.01 | 0.7172 | 1001.3 | 303.8 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -0.98 | 143.77 | -45.33 | 84.35 | 0.7169 | 575.0 | 475.6 | |
| 0.00 | 1.46 | 0.00 | 1.04 | -1.17 | 143.55 | -45.55 | 84.66 | 0.7192 | 480.0 | 375.2 | |
| 8.43 | -22.00 | 6.04 | -22.00 | 0.61 | 143.44 | -45.67 | 82.25 | 0.7242 | 683.7 | 999999 | |
| 0.34 | -22.00 | 0.25 | -22.00 | 1.06 | 143.09 | -46.02 | 81.73 | 0.7293 | 403.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
