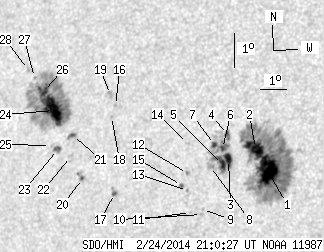

SDO HMI 2014-02-24 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.21 | 510.74 | 68.18 | 324.50 | -1.32 | 148.60 | -38.29 | 83.17 | 0.6249 | -229.7 | -155.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-24 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.04 | 261.64 | 19.98 | 158.31 | -2.44 | 152.05 | -34.85 | 84.02 | 0.5762 | -1249.5 | -509.5 | |
| 17.90 | -1.00 | 10.90 | -1.00 | -1.75 | 151.63 | -35.26 | 82.96 | 0.5837 | -959.1 | 999999 | |
| 6.37 | 43.28 | 3.92 | 26.77 | -2.00 | 150.64 | -36.26 | 83.67 | 0.5970 | -1036.9 | -519.2 | |
| 1.46 | 6.97 | 0.90 | 4.31 | -1.26 | 150.62 | -36.28 | 82.44 | 0.5990 | -682.9 | -520.5 | |
| 4.04 | -3.00 | 2.50 | -3.00 | -2.14 | 150.41 | -36.48 | 83.95 | 0.5998 | -852.8 | 999999 | |
| 1.98 | -3.00 | 1.22 | -3.00 | -1.66 | 150.42 | -36.47 | 83.16 | 0.6007 | -866.9 | 999999 | |
| 2.06 | -3.00 | 1.28 | -3.00 | -1.52 | 150.13 | -36.77 | 83.01 | 0.6051 | -546.2 | 999999 | |
| 0.00 | 4.39 | 0.00 | 2.73 | -2.16 | 149.96 | -36.93 | 84.11 | 0.6059 | 65.0 | -84.7 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -3.42 | 149.62 | -37.28 | 86.24 | 0.6082 | -605.0 | -521.6 | |
| 0.00 | 1.38 | 0.00 | 0.86 | -3.56 | 149.57 | -37.32 | 86.49 | 0.6085 | -676.0 | -554.1 | |
| 0.00 | 0.43 | 0.00 | 0.27 | -3.47 | 149.16 | -37.73 | 86.43 | 0.6143 | -672.0 | -608.6 | |
| 0.00 | 1.72 | 0.00 | 1.08 | -2.30 | 149.10 | -37.80 | 84.56 | 0.6174 | -768.0 | -622.7 | |
| 0.00 | 0.77 | 0.00 | 0.49 | -2.81 | 149.08 | -37.81 | 85.38 | 0.6167 | -538.0 | -507.4 | |
| 0.00 | 1.55 | 0.00 | 0.97 | -1.41 | 149.12 | -37.77 | 83.12 | 0.6191 | -726.0 | -466.6 | |
| 0.77 | 1.98 | 0.49 | 1.25 | -2.64 | 148.86 | -38.04 | 85.16 | 0.6200 | -619.8 | -513.5 | |
| 0.00 | 1.29 | 0.00 | 0.85 | -0.06 | 146.38 | -40.52 | 81.80 | 0.6588 | 732.0 | 620.9 | |
| 1.12 | 3.70 | 0.73 | 2.42 | -2.68 | 146.28 | -40.62 | 85.78 | 0.6544 | 803.2 | 610.4 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -0.37 | 146.22 | -40.68 | 82.32 | 0.6600 | 723.0 | 653.3 | |
| 0.00 | 2.93 | 0.00 | 1.93 | 0.29 | 146.18 | -40.72 | 81.34 | 0.6622 | 610.0 | 613.1 | |
| 0.95 | 4.22 | 0.63 | 2.81 | -2.12 | 145.03 | -41.86 | 85.21 | 0.6716 | 809.2 | 700.6 | |
| 1.81 | 3.44 | 1.22 | 2.32 | -0.81 | 144.66 | -42.23 | 83.37 | 0.6789 | 873.5 | 723.3 | |
| 0.00 | 1.98 | 0.00 | 1.33 | -1.43 | 144.57 | -42.32 | 84.30 | 0.6788 | 734.0 | 620.7 | |
| 2.41 | 4.22 | 1.63 | 2.86 | -1.17 | 144.05 | -42.85 | 84.05 | 0.6859 | 816.9 | 641.1 | |
| 26.16 | 159.43 | 17.86 | 109.29 | 0.00 | 143.90 | -43.00 | 82.39 | 0.6903 | 1033.8 | 362.2 | |
| 0.00 | 0.52 | 0.00 | 0.35 | -1.03 | 143.77 | -43.13 | 83.91 | 0.6897 | 505.0 | 483.3 | |
| 7.14 | -24.00 | 4.92 | -24.00 | 0.61 | 143.49 | -43.41 | 81.64 | 0.6969 | 719.2 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.78 | 1.06 | 143.11 | -43.78 | 81.11 | 0.7026 | 460.0 | 332.3 | |
| 0.00 | 1.81 | 0.00 | 1.26 | 1.32 | 142.86 | -44.04 | 80.82 | 0.7063 | 465.0 | 349.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
