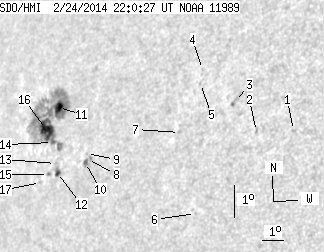

SDO HMI 2014-02-24 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.68 | 150.56 | 26.43 | 133.14 | 8.20 | 132.56 | -53.79 | 74.96 | 0.8286 | 327.2 | 129.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-24 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 1.21 | 7.09 | 143.31 | -43.04 | 72.55 | 0.7122 | -668.0 | -513.8 | |
| 0.00 | 1.38 | 0.00 | 1.00 | 7.20 | 141.76 | -44.59 | 73.04 | 0.7305 | -587.0 | -494.2 | |
| 0.00 | 2.84 | 0.00 | 2.10 | 8.22 | 140.68 | -45.66 | 72.15 | 0.7460 | -239.0 | -391.2 | |
| 0.00 | 1.20 | 0.00 | 0.93 | 9.35 | 139.10 | -47.25 | 71.35 | 0.7670 | -426.0 | -345.0 | |
| 0.00 | 0.52 | 0.00 | 0.40 | 8.92 | 139.08 | -47.26 | 71.89 | 0.7657 | -528.0 | -479.5 | |
| 0.00 | 0.77 | 0.00 | 0.58 | 4.93 | 139.38 | -46.96 | 76.87 | 0.7501 | -442.0 | -389.6 | |
| 0.00 | 1.46 | 0.00 | 1.13 | 7.49 | 138.37 | -47.98 | 73.95 | 0.7687 | -322.0 | -355.5 | |
| 0.00 | 2.24 | 0.00 | 1.89 | 7.08 | 134.12 | -52.23 | 75.83 | 0.8113 | -336.0 | -350.3 | |
| 0.00 | 0.43 | 0.00 | 0.36 | 7.27 | 134.04 | -52.31 | 75.63 | 0.8126 | 294.0 | 256.4 | |
| 1.20 | 3.10 | 1.02 | 2.61 | 7.00 | 134.03 | -52.31 | 75.96 | 0.8119 | -520.8 | -375.1 | |
| 6.80 | 125.97 | 6.04 | 113.10 | 8.86 | 132.33 | -54.02 | 74.28 | 0.8328 | 901.7 | 196.3 | |
| 2.15 | 4.90 | 1.87 | 4.27 | 6.84 | 132.66 | -53.69 | 76.55 | 0.8248 | -214.7 | 261.6 | |
| 0.00 | 1.20 | 0.00 | 1.05 | 7.13 | 132.51 | -53.84 | 76.25 | 0.8269 | 529.0 | 485.8 | |
| 1.20 | -11.00 | 1.07 | -11.00 | 7.80 | 132.23 | -54.11 | 75.55 | 0.8311 | 684.1 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.44 | 6.82 | 132.20 | -54.15 | 76.70 | 0.8291 | -409.0 | -249.9 | |
| 18.33 | -11.00 | 16.43 | -11.00 | 8.23 | 131.84 | -54.51 | 75.15 | 0.8358 | 657.9 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.07 | 6.62 | 131.82 | -54.52 | 77.04 | 0.8323 | -345.0 | -266.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
