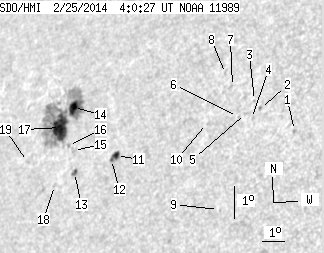

SDO HMI 2014-02-25 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.24 | 141.66 | 31.42 | 116.36 | 8.26 | 132.47 | -50.58 | 73.87 | 0.7977 | 334.4 | 124.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-25 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.94 | 7.24 | 142.15 | -40.90 | 71.40 | 0.6877 | -714.0 | -602.6 | |
| 0.00 | 1.38 | 0.00 | 0.96 | 8.04 | 140.69 | -42.36 | 70.98 | 0.7081 | -517.0 | -555.1 | |
| 0.00 | 0.43 | 0.00 | 0.30 | 8.31 | 140.41 | -42.64 | 70.74 | 0.7124 | -539.0 | -416.6 | |
| 0.00 | 0.52 | 0.00 | 0.36 | 7.76 | 140.36 | -42.70 | 71.50 | 0.7109 | -484.0 | -481.7 | |
| 0.00 | 1.38 | 0.00 | 0.97 | 7.94 | 140.09 | -42.96 | 71.38 | 0.7146 | -574.0 | -509.6 | |
| 0.00 | 0.34 | 0.00 | 0.24 | 7.88 | 139.77 | -43.29 | 71.60 | 0.7181 | -433.0 | -448.5 | |
| 0.00 | 0.43 | 0.00 | 0.31 | 8.83 | 139.43 | -43.63 | 70.50 | 0.7256 | -192.0 | -222.2 | |
| 0.00 | 0.60 | 0.00 | 0.44 | 9.26 | 139.07 | -43.98 | 70.09 | 0.7313 | -453.0 | -378.3 | |
| 0.00 | 0.34 | 0.00 | 0.24 | 5.09 | 139.28 | -43.77 | 75.54 | 0.7140 | -391.0 | -496.5 | |
| 0.00 | 0.69 | 0.00 | 0.50 | 7.78 | 138.49 | -44.57 | 72.27 | 0.7323 | -450.0 | -450.2 | |
| 3.01 | 6.89 | 2.34 | 5.36 | 7.16 | 134.64 | -48.42 | 74.50 | 0.7725 | -557.5 | -346.2 | |
| 1.03 | -11.00 | 0.80 | -11.00 | 7.06 | 134.43 | -48.63 | 74.70 | 0.7744 | -637.8 | 999999 | |
| 1.38 | 3.01 | 1.11 | 2.43 | 6.83 | 132.75 | -50.31 | 75.54 | 0.7913 | -458.6 | -302.2 | |
| 7.84 | 118.51 | 6.45 | 98.54 | 8.85 | 132.36 | -50.69 | 73.20 | 0.8009 | 936.1 | 179.9 | |
| 0.00 | 1.46 | 0.00 | 1.19 | 7.51 | 132.60 | -50.46 | 74.75 | 0.7947 | 792.0 | 682.3 | |
| 0.00 | 1.29 | 0.00 | 1.06 | 7.69 | 132.33 | -50.72 | 74.62 | 0.7979 | 638.0 | 587.7 | |
| 24.98 | -14.00 | 20.72 | -14.00 | 8.29 | 131.84 | -51.21 | 74.05 | 0.8044 | 709.0 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.20 | 6.52 | 131.84 | -51.21 | 76.19 | 0.7997 | -260.0 | -275.4 | |
| 0.00 | 1.55 | 0.00 | 1.32 | 7.40 | 130.39 | -52.67 | 75.58 | 0.8164 | 362.0 | 309.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
