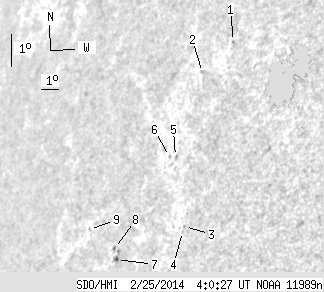

SDO HMI 2014-02-25 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.86 | 12.66 | 0.86 | 12.23 | 5.76 | 125.22 | -57.84 | 78.83 | 0.8604 | -390.9 | -381.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-25 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.93 | 9.99 | 128.84 | -54.22 | 73.03 | 0.8375 | -486.0 | -450.4 | |
| 0.00 | 2.07 | 0.00 | 1.92 | 9.18 | 127.39 | -55.66 | 74.39 | 0.8485 | -550.0 | -419.2 | |
| 0.00 | 0.69 | 0.00 | 0.62 | 4.51 | 127.25 | -55.80 | 79.83 | 0.8398 | -602.0 | -590.2 | |
| 0.00 | 0.86 | 0.00 | 0.78 | 4.37 | 127.16 | -55.89 | 80.02 | 0.8404 | -394.0 | -368.6 | |
| 0.00 | 0.95 | 0.00 | 0.89 | 6.72 | 126.44 | -56.61 | 77.47 | 0.8515 | -595.0 | -568.8 | |
| 0.00 | 0.86 | 0.00 | 0.82 | 6.75 | 126.11 | -56.95 | 77.52 | 0.8546 | -370.0 | -272.5 | |
| 0.86 | 4.05 | 0.86 | 4.06 | 3.92 | 123.51 | -59.55 | 81.35 | 0.8719 | -566.0 | -469.1 | |
| 0.00 | 1.55 | 0.00 | 1.57 | 4.27 | 123.35 | -59.71 | 80.99 | 0.8738 | -254.0 | -245.4 | |
| 0.00 | 0.60 | 0.00 | 0.64 | 5.02 | 121.71 | -61.34 | 80.49 | 0.8883 | 274.0 | 238.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
