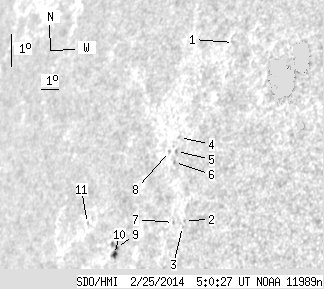

SDO HMI 2014-02-25 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.24 | 15.78 | 2.21 | 15.01 | 5.39 | 125.14 | -57.37 | 79.14 | 0.8556 | -329.8 | -318.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-25 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.07 | 0.00 | 1.83 | 9.80 | 128.90 | -53.61 | 73.05 | 0.8314 | -163.0 | -257.8 | |
| 0.00 | 0.69 | 0.00 | 0.62 | 4.54 | 127.29 | -55.22 | 79.65 | 0.8345 | -474.0 | -491.9 | |
| 0.00 | 0.52 | 0.00 | 0.46 | 4.37 | 127.20 | -55.31 | 79.88 | 0.8349 | -350.0 | -408.7 | |
| 0.00 | 0.26 | 0.00 | 0.24 | 7.13 | 126.64 | -55.87 | 76.81 | 0.8458 | -208.0 | -246.0 | |
| 0.00 | 1.38 | 0.00 | 1.27 | 6.71 | 126.55 | -55.96 | 77.31 | 0.8457 | -499.0 | -521.1 | |
| 0.00 | 1.03 | 0.00 | 0.95 | 6.38 | 126.50 | -56.01 | 77.70 | 0.8455 | -330.0 | -374.2 | |
| 0.00 | 0.95 | 0.00 | 0.86 | 4.54 | 126.70 | -55.80 | 79.79 | 0.8399 | -328.0 | -304.9 | |
| 0.00 | 0.78 | 0.00 | 0.72 | 6.75 | 126.16 | -56.34 | 77.36 | 0.8492 | -309.0 | -290.2 | |
| 0.43 | 7.24 | 0.42 | 7.16 | 4.12 | 123.58 | -58.93 | 80.98 | 0.8670 | -443.4 | -363.9 | |
| 1.81 | -9.00 | 1.79 | -9.00 | 3.92 | 123.49 | -59.02 | 81.23 | 0.8675 | -512.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.90 | 5.06 | 121.72 | -60.79 | 80.34 | 0.8839 | 181.0 | 258.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
