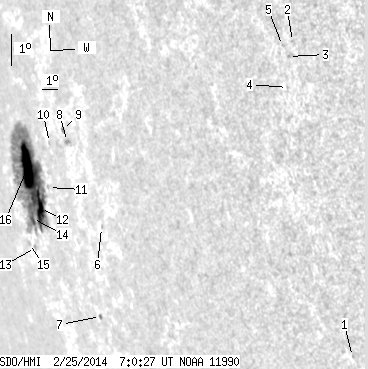

SDO HMI 2014-02-25 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.64 | 244.24 | 99.12 | 421.75 | -13.26 | 107.20 | -74.22 | 101.74 | 0.9575 | -98.1 | -304.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-25 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.60 | -20.69 | 126.02 | -55.40 | 110.27 | 0.8231 | 434.0 | 304.9 | |
| 0.00 | 0.78 | 0.00 | 0.66 | -11.13 | 126.70 | -54.71 | 98.58 | 0.8122 | 612.0 | 509.4 | |
| 0.00 | 0.95 | 0.00 | 0.81 | -11.54 | 126.37 | -55.04 | 99.10 | 0.8155 | 614.0 | 538.8 | |
| 0.00 | 0.86 | 0.00 | 0.74 | -12.45 | 126.04 | -55.38 | 100.21 | 0.8187 | 395.0 | 334.5 | |
| 0.00 | 0.52 | 0.00 | 0.44 | -11.19 | 126.15 | -55.26 | 98.67 | 0.8177 | 467.0 | 407.0 | |
| 0.00 | 0.69 | 0.00 | 0.91 | -15.22 | 112.38 | -69.03 | 103.57 | 0.9285 | -362.0 | -334.5 | |
| 0.78 | 1.64 | 1.12 | 2.37 | -17.72 | 110.22 | -71.20 | 106.30 | 0.9410 | 22.0 | 41.7 | |
| 0.43 | 2.24 | 0.60 | 3.13 | -12.45 | 111.22 | -70.20 | 100.65 | 0.9364 | -644.8 | -636.4 | |
| 0.00 | 2.15 | 0.00 | 3.03 | -12.06 | 111.00 | -70.41 | 100.25 | 0.9378 | 200.0 | 87.1 | |
| 0.00 | 0.95 | 0.00 | 1.43 | -12.30 | 109.62 | -71.80 | 100.58 | 0.9457 | -68.0 | -107.6 | |
| 0.00 | 1.38 | 0.00 | 2.18 | -13.55 | 108.60 | -72.82 | 101.96 | 0.9508 | -488.0 | -481.6 | |
| 15.16 | 227.69 | 25.60 | 398.51 | -14.04 | 107.31 | -74.11 | 102.54 | 0.9572 | -597.0 | -312.9 | |
| 0.00 | 1.98 | 0.00 | 3.66 | -15.05 | 105.72 | -75.70 | 103.69 | 0.9643 | -477.0 | -387.6 | |
| 5.00 | -12.00 | 8.96 | -12.00 | -14.21 | 106.20 | -75.22 | 102.79 | 0.9624 | -573.6 | 999999 | |
| 0.00 | 1.72 | 0.00 | 3.28 | -14.86 | 105.15 | -76.27 | 103.52 | 0.9669 | -438.0 | -374.8 | |
| 36.27 | -12.00 | 62.84 | -12.00 | -12.74 | 106.94 | -74.48 | 101.21 | 0.9594 | 144.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
