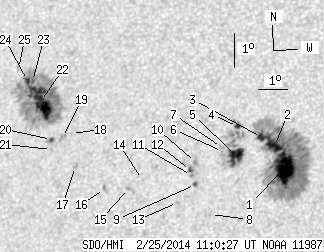

SDO HMI 2014-02-25 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 115.35 | 540.70 | 66.80 | 312.79 | -1.25 | 148.80 | -30.43 | 80.46 | 0.5144 | -254.7 | -148.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-25 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.99 | 277.70 | 21.16 | 154.77 | -2.36 | 152.34 | -26.89 | 81.19 | 0.4593 | -1267.6 | -470.2 | |
| 12.32 | -1.00 | 6.89 | -1.00 | -1.68 | 152.02 | -27.21 | 79.90 | 0.4663 | -1008.3 | 999999 | |
| 4.48 | -1.00 | 2.52 | -1.00 | -1.42 | 151.58 | -27.65 | 79.54 | 0.4737 | -809.0 | 999999 | |
| 2.07 | 50.73 | 1.17 | 28.73 | -1.04 | 150.78 | -28.45 | 79.14 | 0.4870 | -846.4 | -560.1 | |
| 14.73 | -4.00 | 8.33 | -4.00 | -1.90 | 150.70 | -28.53 | 80.92 | 0.4854 | -984.3 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -1.76 | 150.26 | -28.97 | 80.80 | 0.4924 | -362.0 | -300.8 | |
| 0.00 | 2.07 | 0.00 | 1.18 | -1.64 | 150.23 | -29.00 | 80.57 | 0.4933 | -541.0 | -433.9 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -3.61 | 149.80 | -29.43 | 84.67 | 0.4945 | -695.0 | -554.8 | |
| 0.95 | 2.07 | 0.54 | 1.18 | -2.68 | 149.32 | -29.91 | 82.98 | 0.5039 | -783.9 | -614.3 | |
| 0.00 | 2.67 | 0.00 | 1.53 | -2.03 | 149.33 | -29.90 | 81.69 | 0.5054 | -979.0 | -682.5 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -2.41 | 149.19 | -30.04 | 82.49 | 0.5066 | -703.0 | -595.1 | |
| 0.86 | 4.13 | 0.49 | 2.37 | -2.25 | 149.16 | -30.07 | 82.20 | 0.5074 | -699.2 | -672.3 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -3.18 | 148.68 | -30.55 | 84.15 | 0.5122 | -693.0 | -589.8 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -2.41 | 147.49 | -31.74 | 83.06 | 0.5316 | -338.0 | -288.3 | |
| 0.00 | 1.64 | 0.00 | 0.96 | -2.65 | 146.99 | -32.24 | 83.65 | 0.5383 | 952.0 | 731.1 | |
| 0.00 | 2.76 | 0.00 | 1.63 | -2.59 | 146.14 | -33.09 | 83.79 | 0.5507 | 546.0 | 595.2 | |
| 0.00 | 1.98 | 0.00 | 1.19 | -1.86 | 145.13 | -34.10 | 82.81 | 0.5670 | 830.0 | 589.4 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -0.87 | 145.00 | -34.23 | 81.12 | 0.5715 | 641.0 | 606.2 | |
| 0.00 | 4.91 | 0.00 | 2.97 | -0.96 | 144.67 | -34.55 | 81.40 | 0.5758 | 776.0 | 682.9 | |
| 1.38 | 3.19 | 0.84 | 1.94 | -0.99 | 144.28 | -34.95 | 81.58 | 0.5813 | 886.4 | 709.6 | |
| 0.00 | 1.12 | 0.00 | 0.68 | -1.29 | 144.27 | -34.96 | 82.09 | 0.5806 | 741.0 | 671.3 | |
| 36.95 | 178.91 | 22.62 | 109.66 | 0.17 | 143.88 | -35.35 | 79.77 | 0.5901 | 1006.0 | 363.8 | |
| 1.29 | -22.00 | 0.80 | -22.00 | 0.79 | 143.59 | -35.64 | 78.85 | 0.5961 | 769.1 | 999999 | |
| 2.33 | -22.00 | 1.44 | -22.00 | 0.83 | 143.40 | -35.83 | 78.85 | 0.5988 | 611.1 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.07 | 1.22 | 143.07 | -36.16 | 78.36 | 0.6046 | 459.0 | 315.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
