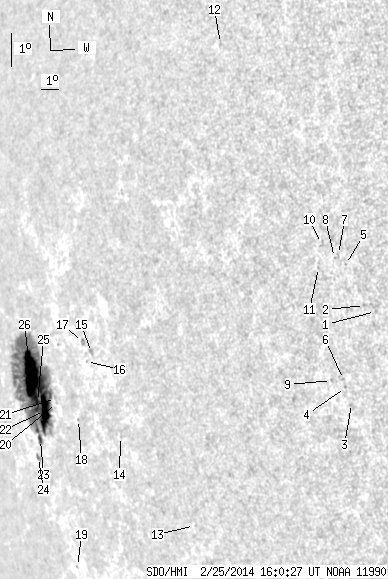

SDO HMI 2014-02-25 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.95 | 293.21 | 93.18 | 390.52 | -13.19 | 107.57 | -68.92 | 101.40 | 0.9271 | 49.2 | -180.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-25 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.84 | -12.98 | 127.56 | -48.92 | 101.03 | 0.7507 | 603.0 | 452.0 | |
| 0.00 | 1.38 | 0.00 | 1.04 | -12.76 | 127.11 | -49.37 | 100.71 | 0.7557 | 371.0 | 319.6 | |
| 0.00 | 0.86 | 0.00 | 0.67 | -15.58 | 125.62 | -50.86 | 104.33 | 0.7734 | 395.0 | 391.0 | |
| 0.00 | 1.03 | 0.00 | 0.81 | -15.08 | 125.50 | -50.99 | 103.68 | 0.7744 | 618.0 | 533.8 | |
| 0.00 | 0.60 | 0.00 | 0.46 | -11.47 | 126.54 | -49.94 | 99.00 | 0.7618 | 580.0 | 513.7 | |
| 0.00 | 1.12 | 0.00 | 0.87 | -14.84 | 125.48 | -51.00 | 103.36 | 0.7745 | 545.0 | 503.7 | |
| 0.00 | 1.12 | 0.00 | 0.86 | -11.14 | 126.29 | -50.19 | 98.57 | 0.7646 | 315.0 | 422.1 | |
| 0.00 | 0.43 | 0.00 | 0.33 | -11.21 | 126.08 | -50.40 | 98.66 | 0.7669 | 649.0 | 606.4 | |
| 0.00 | 1.03 | 0.00 | 0.81 | -14.81 | 124.90 | -51.59 | 103.29 | 0.7807 | 386.0 | 333.8 | |
| 0.00 | 2.41 | 0.00 | 1.87 | -10.74 | 125.57 | -50.91 | 98.05 | 0.7725 | 309.0 | 379.5 | |
| 0.00 | 0.60 | 0.00 | 0.47 | -11.43 | 125.26 | -51.23 | 98.95 | 0.7759 | 124.0 | 163.7 | |
| 0.00 | 1.46 | 0.00 | 1.25 | -4.37 | 121.66 | -54.83 | 90.29 | 0.8173 | 33.0 | 119.4 | |
| 0.00 | 0.52 | 0.00 | 0.51 | -18.31 | 115.63 | -60.85 | 107.04 | 0.8693 | -390.0 | -333.7 | |
| 0.00 | 0.60 | 0.00 | 0.66 | -15.22 | 112.43 | -64.06 | 103.48 | 0.8941 | -368.0 | -369.7 | |
| 0.00 | 2.93 | 0.00 | 3.29 | -12.59 | 111.73 | -64.75 | 100.55 | 0.8998 | -417.0 | -394.2 | |
| 0.00 | 0.86 | 0.00 | 0.98 | -12.81 | 111.26 | -65.22 | 100.81 | 0.9032 | -343.0 | -362.8 | |
| 0.00 | 2.50 | 0.00 | 2.86 | -12.23 | 111.25 | -65.23 | 100.17 | 0.9034 | 292.0 | 170.8 | |
| 0.00 | 0.86 | 0.00 | 1.04 | -14.41 | 109.77 | -66.71 | 102.62 | 0.9134 | 27.0 | 135.9 | |
| 0.00 | 0.77 | 0.00 | 1.06 | -18.57 | 106.54 | -69.95 | 107.19 | 0.9337 | -96.0 | -118.7 | |
| 0.00 | 0.52 | 0.00 | 0.66 | -13.76 | 108.39 | -68.09 | 101.96 | 0.9228 | -567.0 | -520.3 | |
| 0.00 | 1.38 | 0.00 | 1.75 | -13.61 | 108.40 | -68.08 | 101.79 | 0.9228 | -630.0 | -538.8 | |
| 23.50 | 266.01 | 31.24 | 363.05 | -13.85 | 107.32 | -69.17 | 102.10 | 0.9297 | -616.7 | -196.6 | |
| 2.75 | -22.00 | 3.81 | -22.00 | -14.63 | 106.42 | -70.07 | 102.98 | 0.9350 | -253.7 | 999999 | |
| 1.03 | 3.10 | 1.46 | 4.38 | -15.12 | 105.86 | -70.62 | 103.52 | 0.9382 | -459.8 | -401.4 | |
| 2.07 | -22.00 | 2.80 | -22.00 | -13.53 | 106.91 | -69.57 | 101.77 | 0.9323 | 334.5 | 999999 | |
| 39.60 | -22.00 | 53.87 | -22.00 | -12.69 | 106.82 | -69.66 | 100.88 | 0.9331 | 429.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
