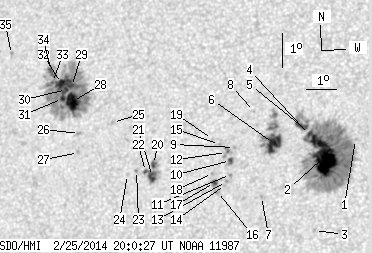

SDO HMI 2014-02-25 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.86 | 547.80 | 60.96 | 302.19 | -1.31 | 148.98 | -25.30 | 78.12 | 0.4374 | -352.7 | -123.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-02-25 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.46 | -1.73 | 153.45 | -20.82 | 76.31 | 0.3673 | -220.0 | -197.8 | |
| 49.23 | 275.87 | 26.36 | 147.64 | -2.19 | 152.46 | -21.82 | 78.17 | 0.3811 | -1321.1 | -505.8 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -4.37 | 152.08 | -22.19 | 84.02 | 0.3804 | -779.0 | -581.0 | |
| 1.64 | -2.00 | 0.88 | -2.00 | -1.51 | 151.99 | -22.29 | 76.77 | 0.3912 | -852.8 | 999999 | |
| 4.73 | -2.00 | 2.55 | -2.00 | -1.26 | 151.73 | -22.55 | 76.32 | 0.3962 | -883.5 | 999999 | |
| 16.01 | 43.21 | 8.68 | 23.44 | -1.72 | 150.82 | -23.45 | 78.00 | 0.4085 | -1083.5 | -658.8 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -3.28 | 150.40 | -23.88 | 81.96 | 0.4099 | -864.0 | -715.5 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -0.74 | 150.22 | -24.06 | 76.07 | 0.4218 | -467.0 | -400.5 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -1.78 | 149.55 | -24.72 | 78.84 | 0.4279 | -836.0 | -610.6 | |
| 1.55 | 4.05 | 0.85 | 2.22 | -2.16 | 149.41 | -24.86 | 79.78 | 0.4287 | -987.6 | -735.8 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -2.57 | 149.41 | -24.87 | 80.74 | 0.4275 | -892.0 | -689.8 | |
| 0.00 | 5.51 | 0.00 | 3.02 | -1.91 | 149.29 | -24.99 | 79.28 | 0.4315 | -753.0 | -697.7 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -2.77 | 149.27 | -25.01 | 81.26 | 0.4290 | -900.0 | -825.9 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -2.86 | 149.24 | -25.04 | 81.48 | 0.4293 | -629.0 | -612.2 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -1.66 | 149.06 | -25.21 | 78.83 | 0.4359 | -662.0 | -497.7 | |
| 0.00 | 2.41 | 0.00 | 1.32 | -3.05 | 148.97 | -25.31 | 82.04 | 0.4329 | -671.0 | -569.0 | |
| 1.55 | 3.96 | 0.85 | 2.18 | -2.78 | 148.88 | -25.40 | 81.45 | 0.4351 | -838.2 | -558.1 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -2.51 | 148.82 | -25.46 | 80.87 | 0.4368 | -552.0 | -378.0 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -1.50 | 148.83 | -25.44 | 78.59 | 0.4400 | -448.0 | -364.3 | |
| 1.72 | 18.85 | 0.96 | 10.55 | -2.13 | 146.87 | -27.41 | 80.89 | 0.4679 | 1078.1 | 735.2 | |
| 4.91 | -20.00 | 2.75 | -20.00 | -2.49 | 146.82 | -27.45 | 81.66 | 0.4674 | 1106.8 | 999999 | |
| 0.77 | -20.00 | 0.43 | -20.00 | -2.32 | 146.59 | -27.68 | 81.41 | 0.4714 | 895.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -2.28 | 146.29 | -27.98 | 81.43 | 0.4761 | 800.0 | 706.7 | |
| 0.00 | 1.38 | 0.00 | 0.78 | -2.38 | 145.99 | -28.29 | 81.76 | 0.4805 | 685.0 | 438.9 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -0.80 | 145.50 | -28.77 | 78.77 | 0.4927 | 827.0 | 643.7 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -1.05 | 144.38 | -29.90 | 79.78 | 0.5085 | 1006.0 | 798.2 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -1.62 | 144.33 | -29.94 | 80.89 | 0.5074 | 750.0 | 613.2 | |
| 15.92 | 173.53 | 9.19 | 100.42 | -0.08 | 144.14 | -30.13 | 78.03 | 0.5153 | 1239.0 | 473.2 | |
| 1.29 | -28.00 | 0.75 | -28.00 | 0.37 | 144.11 | -30.17 | 77.20 | 0.5174 | 1170.3 | 999999 | |
| 1.55 | -28.00 | 0.90 | -28.00 | 0.29 | 143.94 | -30.34 | 77.43 | 0.5196 | 1113.3 | 999999 | |
| 2.07 | -28.00 | 1.20 | -28.00 | 0.03 | 143.80 | -30.48 | 77.98 | 0.5207 | 869.2 | 999999 | |
| 4.39 | -28.00 | 2.55 | -28.00 | 0.48 | 143.76 | -30.51 | 77.15 | 0.5228 | 872.3 | 999999 | |
| 0.43 | -28.00 | 0.25 | -28.00 | 0.53 | 143.45 | -30.82 | 77.21 | 0.5275 | 554.8 | 999999 | |
| 3.10 | -28.00 | 1.81 | -28.00 | 0.86 | 143.42 | -30.86 | 76.62 | 0.5293 | 667.8 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.17 | 1.47 | 142.01 | -32.26 | 76.22 | 0.5516 | 685.0 | 584.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
