SDO HMI 2014-02-26 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.31 | 347.09 | 88.78 | 377.81 | -13.10 | 108.01 | -63.52 | 101.09 | 0.8880 | 206.6 | -116.8 | |
|
previous
or next observation for the same group /

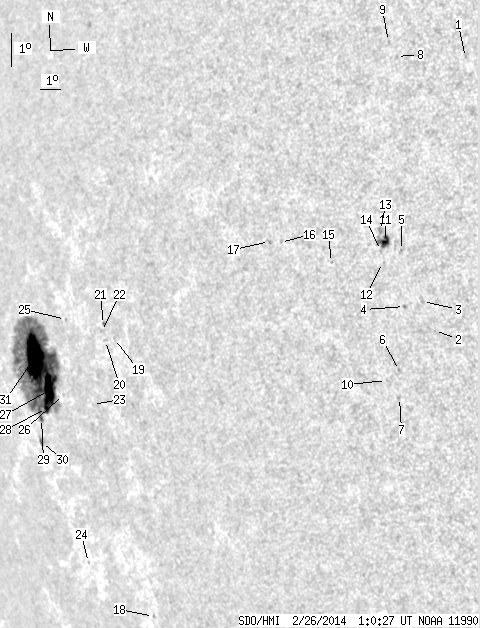

back to the solar disc SDO HMI 2014-02-26 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.40 | -6.04 | 130.18 | -41.35 | 90.96 | 0.6594 | 629.0 | 522.6 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -13.99 | 127.58 | -43.94 | 102.77 | 0.6927 | 516.0 | 474.8 | |
| 0.00 | 1.03 | 0.00 | 0.71 | -13.09 | 127.28 | -44.24 | 101.44 | 0.6957 | 604.0 | 442.9 | |
| 0.00 | 1.55 | 0.00 | 1.08 | -13.17 | 126.49 | -45.03 | 101.50 | 0.7054 | 577.0 | 489.2 | |
| 0.00 | 0.60 | 0.00 | 0.42 | -11.51 | 126.73 | -44.80 | 99.14 | 0.7016 | 773.0 | 691.1 | |
| 0.00 | 1.21 | 0.00 | 0.85 | -15.05 | 125.79 | -45.73 | 104.07 | 0.7153 | 445.0 | 365.6 | |
| 0.00 | 1.46 | 0.00 | 1.04 | -15.84 | 125.56 | -45.96 | 105.15 | 0.7189 | 391.0 | 380.2 | |
| 0.00 | 0.78 | 0.00 | 0.53 | -5.77 | 127.39 | -44.14 | 90.87 | 0.6953 | 644.0 | 468.3 | |
| 0.00 | 1.03 | 0.00 | 0.71 | -5.30 | 127.10 | -44.43 | 90.22 | 0.6994 | 564.0 | 451.5 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -15.29 | 125.14 | -46.38 | 104.34 | 0.7231 | 496.0 | 437.7 | |
| 5.00 | 11.71 | 3.50 | 8.22 | -11.19 | 126.11 | -45.42 | 98.66 | 0.7091 | 734.1 | 254.3 | |
| 0.00 | 0.52 | 0.00 | 0.36 | -11.79 | 125.85 | -45.68 | 99.51 | 0.7124 | 241.0 | 308.2 | |
| 0.00 | 2.76 | 0.00 | 1.93 | -10.84 | 125.96 | -45.57 | 98.17 | 0.7109 | 647.0 | 474.3 | |
| 0.00 | 0.78 | 0.00 | 0.55 | -11.43 | 125.84 | -45.69 | 99.00 | 0.7124 | 315.0 | 282.1 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -11.59 | 123.63 | -47.90 | 99.17 | 0.7386 | -645.0 | -534.4 | |
| 0.00 | 0.43 | 0.00 | 0.33 | -10.79 | 121.45 | -50.08 | 98.07 | 0.7632 | 586.0 | 493.4 | |
| 0.00 | 1.46 | 0.00 | 1.13 | -10.71 | 120.94 | -50.58 | 97.98 | 0.7688 | 552.0 | 447.5 | |
| 0.00 | 0.78 | 0.00 | 0.79 | -21.07 | 110.02 | -61.50 | 110.15 | 0.8756 | -552.0 | -410.4 | |
| 0.00 | 1.03 | 0.00 | 0.99 | -12.73 | 112.07 | -59.45 | 100.56 | 0.8566 | -361.0 | -362.8 | |
| 0.00 | 0.86 | 0.00 | 0.83 | -12.73 | 111.53 | -60.00 | 100.57 | 0.8614 | -592.0 | -473.3 | |
| 0.00 | 1.29 | 0.00 | 1.25 | -12.25 | 111.59 | -59.94 | 100.02 | 0.8609 | 275.0 | 241.5 | |
| 0.00 | 0.86 | 0.00 | 0.84 | -12.44 | 111.39 | -60.13 | 100.24 | 0.8626 | -291.0 | -265.5 | |
| 0.00 | 0.60 | 0.00 | 0.61 | -14.50 | 109.93 | -61.60 | 102.64 | 0.8747 | 216.0 | 147.9 | |
| 0.00 | 0.78 | 0.00 | 0.87 | -19.04 | 106.92 | -64.61 | 107.73 | 0.8984 | -235.0 | -208.6 | |
| 0.00 | 0.60 | 0.00 | 0.62 | -11.86 | 109.34 | -62.19 | 99.62 | 0.8799 | 113.0 | 77.1 | |
| 0.00 | 0.95 | 0.00 | 1.01 | -14.01 | 108.23 | -63.30 | 102.09 | 0.8884 | -464.0 | -430.3 | |
| 22.82 | 307.64 | 25.17 | 346.11 | -13.79 | 107.30 | -64.23 | 101.86 | 0.8956 | -792.9 | -142.6 | |
| 2.33 | -27.00 | 2.60 | -27.00 | -14.29 | 106.89 | -64.64 | 102.43 | 0.8986 | -380.3 | 999999 | |
| 1.72 | -27.00 | 1.96 | -27.00 | -14.54 | 106.38 | -65.14 | 102.72 | 0.9022 | -442.6 | 999999 | |
| 1.12 | 3.45 | 1.29 | 3.98 | -15.23 | 105.98 | -65.55 | 103.49 | 0.9051 | -361.5 | -311.4 | |
| 48.32 | -27.00 | 54.26 | -27.00 | -12.73 | 106.82 | -64.70 | 100.69 | 0.8993 | 696.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
